MAX14130FAEE+ - Analog Devices

Description: 4-Ch Digital Isolator 4/0 150Mbps QSOP16

Download MAX14130FAEE+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

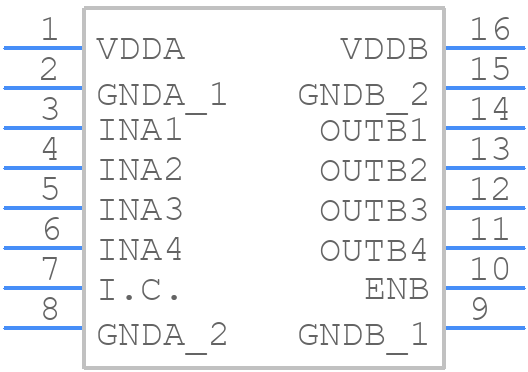

Symbol
MAX14130FAEE+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX14130FAEE+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MAX 21-0055_QSOP16
click to zoom
3D Models
MAX14130FAEE+ - Analog Devices - 3D model - Small Outline Packages - MAX 21-0055_QSOP16
click to zoom

MAX14130FAEE+ Details

  • Manufacturer Part Number:

    MAX14130FAEE+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    16-QSOP-150_MIL

  • Package Description:

    QSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    16-QSOP-150_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2014-10-24

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    8.66 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    4

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP16,.01

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    1.71 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.635 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.89 mm

MAX14130FAEE+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX14130FAEE+ involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the traces between the device and the power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To optimize the performance of the MAX14130FAEE+ in a noisy environment, use a low-pass filter on the input signals, use a shielded cable for the input signals, and keep the device away from high-frequency sources. Additionally, consider using a ferrite bead or a common-mode choke on the power supply lines to reduce noise.
  • The maximum operating temperature range for the MAX14130FAEE+ is -40°C to +125°C. However, the device's performance may degrade at temperatures above 85°C, and it's recommended to derate the device's performance accordingly.
  • Yes, the MAX14130FAEE+ can be used in a 3.3V system. The device's digital output is 3.3V-compatible, and the analog input can be biased to 3.3V. However, the device's performance may be affected at lower supply voltages, and it's recommended to consult the datasheet for specific performance characteristics.
  • To troubleshoot issues with the MAX14130FAEE+, start by checking the power supply voltage and ensuring that it's within the recommended range. Then, check the input signals and ensure that they're within the recommended range. Use an oscilloscope to check the output signals and ensure that they're correct. If the issue persists, consult the datasheet and application notes for troubleshooting guidelines.
