MAX14434FAWE+ - Analog Devices

Description: Digital Isolators 4-Channel, Low Power, 5kV Digital Isolators

Download MAX14434FAWE+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

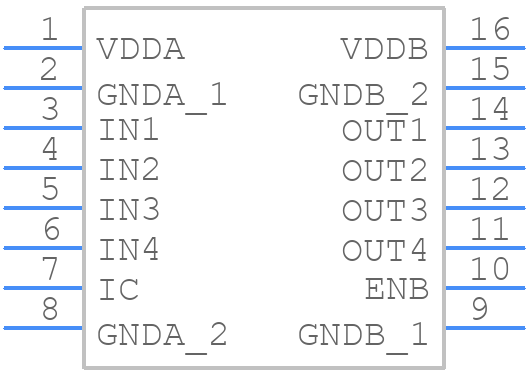

MAX14434FAWE+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX14434FAWE+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 16 Wide SOIC
click to zoom
3D Models
MAX14434FAWE+ - Analog Devices - 3D model - Small Outline Packages - 16 Wide SOIC
click to zoom

MAX14434FAWE+ Details

  • Manufacturer Part Number:

    MAX14434FAWE+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    16-SOIC_W-300_MIL

  • Package Description:

    SOIC-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    16-SOIC_W-300_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2017-09-01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Interface IC Type:

    DIGITAL ISOLATOR
