MAX14435FAWE+ - Analog Devices

Description: Digital Isolators 4-Channel, Low Power, 5kV Digital Isolators

Download MAX14435FAWE+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

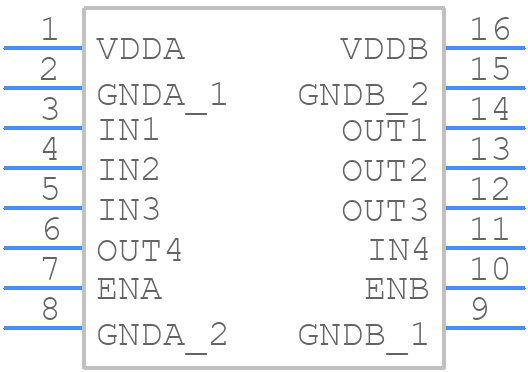

MAX14435FAWE+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX14435FAWE+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - W16MS+12
click to zoom
3D Models
MAX14435FAWE+ - Analog Devices - 3D model - Small Outline Packages - W16MS+12
click to zoom

MAX14435FAWE+ Details

  • Manufacturer Part Number:

    MAX14435FAWE+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    16-SOIC_W-300_MIL

  • Package Description:

    SOIC-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    16-SOIC_W-300_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2017-09-01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Interface IC Type:

    DIGITAL ISOLATOR

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    10.3 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    2.65 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    1.71 V

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

MAX14435FAWE+ Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the MAX14435FAWE+ is to use a 4-layer board with a solid ground plane, and to keep the analog and digital signals separate. Additionally, it's recommended to use a low-ESR capacitor for the VCC bypass and to place it as close as possible to the VCC pin.
  • To optimize the performance of the MAX14435FAWE+ in a noisy environment, it's recommended to use a shielded cable for the analog input, to add a common-mode choke to the input, and to use a low-pass filter to reject high-frequency noise. Additionally, it's recommended to use a low-noise power supply and to decouple the VCC pin with a low-ESR capacitor.
  • The maximum cable length that can be used with the MAX14435FAWE+ depends on the specific application and the type of cable used. However, as a general rule, it's recommended to keep the cable length as short as possible to minimize signal attenuation and noise pickup. A good starting point is to use a cable length of 1-2 meters, and to use a shielded cable to minimize noise pickup.
  • To troubleshoot issues with the MAX14435FAWE+, it's recommended to start by checking the power supply voltage and ensuring that it's within the recommended range. Next, check the input signal and ensure that it's within the recommended range and that it's not clipped or distorted. Additionally, check the output signal and ensure that it's not clipped or distorted, and that it's within the expected range. If the issue persists, it's recommended to consult the datasheet and the application notes for further troubleshooting guidance.
  • The recommended operating temperature range for the MAX14435FAWE+ is -40°C to +125°C. However, it's recommended to derate the device's performance at temperatures above 85°C, and to ensure that the device is operated within the recommended temperature range to ensure reliable operation.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX14435FAWE+ Overview

Use the download button to access the MAX14435FAWE+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX14, or try a keyword search, such as Other Interface ICs
