MAX14435FAWE+T - Analog Devices

Description: DGTL ISO 5000VRMS 4CH GP 16SOIC

Download MAX14435FAWE+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

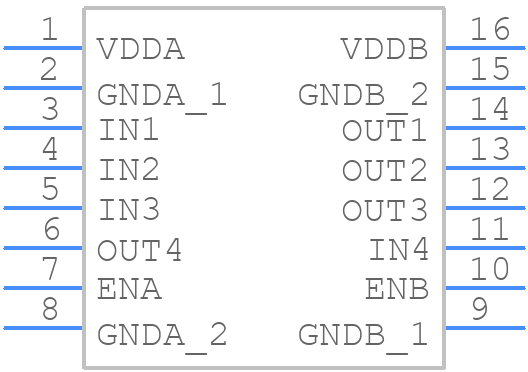

MAX14435FAWE+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX14435FAWE+T - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - W16MS+12
click to zoom
3D Models
MAX14435FAWE+T - Analog Devices - 3D model - Small Outline Packages - W16MS+12
click to zoom

MAX14435FAWE+T Details

  • Manufacturer Part Number:

    MAX14435FAWE+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    16-SOIC_W-300_MIL

  • Package Description:

    SOIC-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    16-SOIC_W-300_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2017-09-01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Interface IC Type:

    DIGITAL ISOLATOR

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    10.3 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    4

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    2.65 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    1.71 V

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

MAX14435FAWE+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX14435FAWE+T involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated layer for the analog signals to minimize noise and interference.
  • The MAX14435FAWE+T requires a single 3.3V power supply, and it's recommended to use a low-noise, low-dropout regulator to power the device. The power sequencing requirements are not critical, but it's recommended to power up the device after the power supply has stabilized to prevent any potential latch-up or damage.
  • The MAX14435FAWE+T is a high-speed analog-to-digital converter (ADC) that can achieve data transfer rates of up to 100Msps (megasamples per second). However, the actual data transfer rate may be limited by the system's clock speed, data bus width, and other factors.
  • The MAX14435FAWE+T does not require any external calibration, as it has an internal calibration circuit that is performed during power-up. However, it's recommended to perform a system-level calibration to ensure optimal performance, which may involve adjusting the gain, offset, and other parameters to match the specific system requirements.
  • The typical power consumption of the MAX14435FAWE+T is around 350mW, but it can be reduced by using the device's power-down mode, reducing the clock speed, and optimizing the system's power management. Additionally, using a low-power mode or shutting down the device when not in use can also help reduce power consumption.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX14435FAWE+T Overview

Use the download button to access the MAX14435FAWE+T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX14, or try a keyword search, such as Other Interface ICs

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
