MAX14514ETD+T - Analog Devices

Description: +2.7V to +5.5V Input Voltage Range

Download MAX14514ETD+T Model

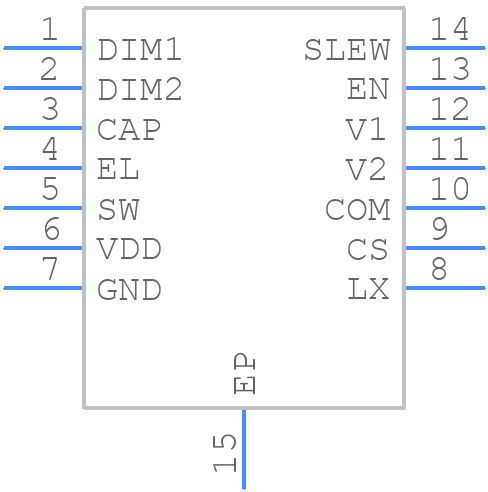

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MAX14514ETD+T - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - T1433-2
click to zoom
3D Models
MAX14514ETD+T - Analog Devices  - 3D model - Small Outline No-lead - T1433-2
click to zoom

MAX14514ETD+T Details

  • Manufacturer Part Number:

    MAX14514ETD+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    14-LFCSP-3X3X0.75

  • Package Description:

    TDFN-14

  • Pin Count:

    14

  • Manufacturer Package Code:

    14-LFCSP-3X3X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2010-04-23

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Interface IC Type:

    EL DISPLAY DRIVER

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Time@Peak Reflow Temperature-Max (s):

    30

MAX14514ETD+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX14514ETD+T involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated layer for the analog signals to minimize noise and interference.
  • The MAX14514ETD+T has a thermal pad on the bottom of the package, which should be connected to a thermal plane on the PCB to dissipate heat. A thermal interface material (TIM) can be used to improve heat transfer between the device and the thermal plane. Additionally, ensuring good airflow around the device and using a heat sink if necessary can help to keep the device within its operating temperature range.
  • The recommended input voltage range for the MAX14514ETD+T is 2.7V to 5.5V. Operating the device outside of this range may affect its performance and reliability.
  • The MAX14514ETD+T can be configured for I2C or SPI communication by setting the appropriate pins high or low. For I2C mode, the SCL pin should be connected to a clock signal and the SDA pin should be connected to a data signal. For SPI mode, the SCK pin should be connected to a clock signal, the MOSI pin should be connected to a data input signal, and the MISO pin should be connected to a data output signal. The specific pin connections and configuration will depend on the application and the microcontroller being used.
  • The maximum data transfer rate of the MAX14514ETD+T depends on the communication mode being used. In I2C mode, the maximum data transfer rate is 400 kHz. In SPI mode, the maximum data transfer rate is 20 MHz.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX14514ETD+T Overview

Use the download button to access the MAX14514ETD+T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX14, or try a keyword search, such as Display Drivers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.

Parts related to MAX14514ETD+T

Showing 0 results

MAX14514ETD+T Alternates

Showing results

Image Part Number Model
Part Image MAX14514ETD+ Maxim Integrated Products

EL Driver, 1-Segment, BCDMOS, PDSMALL OUTLINE, HEAT SINK/SLUG, VERY VERY THIN PROFILE14
