MAX14523BATA+T - Analog Devices

Description: MAXIM INTEGRATED PRODUCTS - MAX14523BATA+T - Power Load Distribution Switch, High Side, Active High, 1 Output, 5.5V, 1.5A, 0.07ohm, TDFN-8

Download MAX14523BATA+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

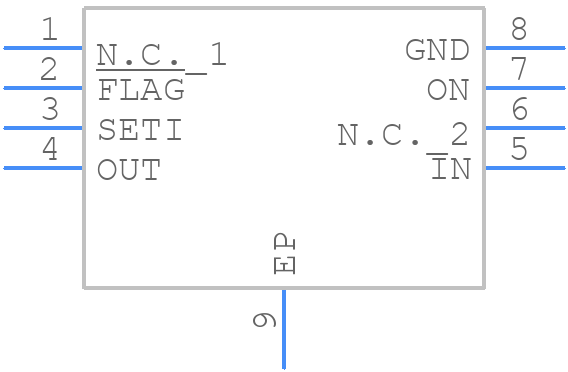

MAX14523BATA+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX14523BATA+T - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - T833+2
click to zoom
3D Models
MAX14523BATA+T - Analog Devices - 3D model - Small Outline No-lead - T833+2
click to zoom

MAX14523BATA+T Details

  • Manufacturer Part Number:

    MAX14523BATA+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-LFCSP-3X3X0.75

  • Package Description:

    3 X 3 MM, ROHS COMPLIANT, TDFN-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-LFCSP-3X3X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2009-08-14

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.12,25

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max (Isup):

    0.3 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    1.7 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

MAX14523BATA+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX14523BATA+T involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated layer for the analog signals, and to minimize the length of the traces connecting the device to the power supply and load.
  • To ensure proper power-up and initialization, make sure to follow the recommended power-up sequence, which involves applying the power supply voltage (VCC) before the input voltage (VIN). Also, ensure that the EN pin is pulled high to enable the device, and that the FAULT pin is properly connected to a pull-up resistor and a capacitor to filter out noise.
  • The maximum current that the MAX14523BATA+T can handle is 1A. To calculate the power dissipation, use the formula: Pd = (VIN - VOUT) x IOUT, where Pd is the power dissipation, VIN is the input voltage, VOUT is the output voltage, and IOUT is the output current. Make sure to consider the thermal resistance of the package and the PCB when calculating the junction temperature.
  • To troubleshoot issues with the MAX14523BATA+T, start by checking the input voltage and current, as well as the output voltage and current. Verify that the device is properly powered up and initialized, and that the EN pin is pulled high. Check for any signs of overheating, and ensure that the device is properly cooled. Use an oscilloscope to monitor the output voltage and current, and check for any noise or oscillations.
  • The MAX14523BATA+T is rated for operation up to 125°C, but the device's performance and reliability may be affected at high temperatures. Make sure to consider the thermal resistance of the package and the PCB, and ensure that the device is properly cooled. Also, be aware of the limitations on the output current and power dissipation at high temperatures.
