MAX1452AAE+ - Analog Devices

Description: Low-Cost Precision Sensor Signal Conditioner

Download MAX1452AAE+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
MAX1452AAE+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints

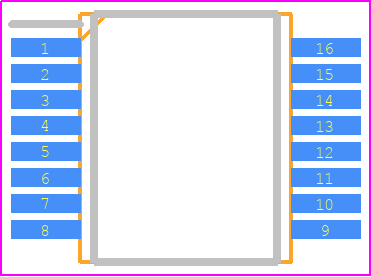

MAX1452AAE+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 16 SSOP
click to zoom
3D Models
MAX1452AAE+ - Analog Devices - 3D model - Small Outline Packages - 16 SSOP
click to zoom

MAX1452AAE+ Details

  • Manufacturer Part Number:

    MAX1452AAE+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • Part Package Code:

    16-SSOP-5.3_MM

  • Package Description:

    ROHS COMPLIANT, SSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    16-SSOP-5.3_MM

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2000-10-23

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    1

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    6.2 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP16,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.99 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5.29 mm

MAX1452AAE+ Frequently Asked Questions (FAQs)

  • The MAX1452AAE+ requires careful layout and placement to ensure proper operation. It is recommended to follow the layout guidelines provided in the datasheet, including keeping the input and output traces short and away from noise sources, and using a solid ground plane to reduce EMI.
  • The MAX1452AAE+ has a maximum junction temperature of 150°C. To ensure reliable operation, it is recommended to provide adequate heat sinking and thermal management, such as using a heat sink or thermal pad, and keeping the device away from high-temperature sources.
  • The recommended power-up sequence for the MAX1452AAE+ is to apply the power supply voltage (VCC) before applying the input signals. This ensures that the internal biasing and reference circuits are properly established before the device starts operating.
  • To troubleshoot issues with the MAX1452AAE+, start by checking the power supply voltage and input signals to ensure they are within the recommended operating range. Then, use a oscilloscope to check the output signals and verify that they are within the expected range. If the issue persists, consult the datasheet and application notes for troubleshooting guidelines.
  • The MAX1452AAE+ is a commercial-grade device and may not be suitable for high-reliability or safety-critical applications. For such applications, it is recommended to use a device that is specifically designed and qualified for high-reliability or safety-critical use, such as a device with a higher temperature rating or additional safety features.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX1452AAE+ Overview

Use the download button to access the MAX1452AAE+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX14, or try a keyword search, such as Other Signal Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
