MAX1452CAE+ - Analog Devices

Description: Low-Cost Precision Sensor Signal Conditioner

Download MAX1452CAE+ Model
Schematic
symbols

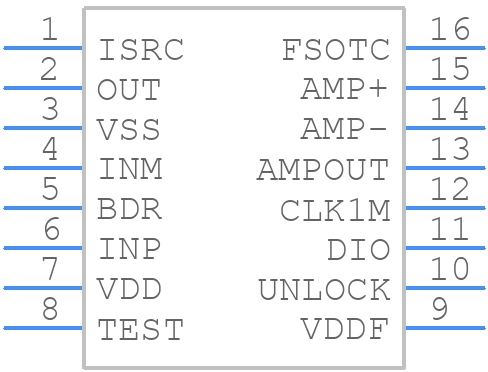

Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

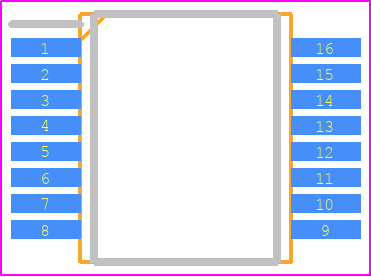

MAX1452CAE+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - A16+2
click to zoom
3D Models
MAX1452CAE+ - Analog Devices  - 3D model - Small Outline Packages - A16+2
click to zoom

MAX1452CAE+ Details

  • Manufacturer Part Number:

    MAX1452CAE+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • Part Package Code:

    16-SSOP-5.3_MM

  • Package Description:

    ROHS COMPLIANT, SSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    16-SSOP-5.3_MM

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2000-10-23

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    1

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    6.2 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP16,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.99 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5.29 mm

MAX1452CAE+ Frequently Asked Questions (FAQs)

  • The recommended layout and routing for the MAX1452CAE+ involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the traces between the IC and the capacitors. A 4-layer PCB with a dedicated analog ground layer is recommended. Additionally, the datasheet provides a recommended layout and routing diagram that should be followed.
  • To ensure the MAX1452CAE+ is properly powered and decoupled, use a high-quality, low-ESR capacitor (e.g., 10uF ceramic) between the VCC and GND pins, and place it as close to the IC as possible. Additionally, use a 1uF capacitor between the VCC and AVCC pins to decouple the analog power supply. The power supply should be well-regulated and have a low noise floor.
  • The MAX1452CAE+ has an operating temperature range of -40°C to +85°C. However, the device's performance may degrade at higher temperatures, and the maximum junction temperature should not exceed 150°C.
  • The MAX1452CAE+ can be programmed using the SPI interface. The device has a set of registers that can be accessed and modified using the SPI protocol. The datasheet provides a detailed description of the register map and the programming sequence. Additionally, Analog Devices provides a software development kit (SDK) that includes example code and a GUI-based programming tool.
  • The typical current consumption of the MAX1452CAE+ depends on the operating mode and the frequency of operation. In the active mode, the typical current consumption is around 10mA to 15mA. In the shutdown mode, the typical current consumption is around 1uA to 10uA. The datasheet provides a detailed description of the current consumption in different operating modes.
