MAX1454AUE+ - Analog Devices

Description: MAXIM INTEGRATED PRODUCTS - MAX1454AUE+ - Signal Conditioner, 3 V, 5.5 V, TSSOP, 16 Pins, -40 °C

Download MAX1454AUE+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

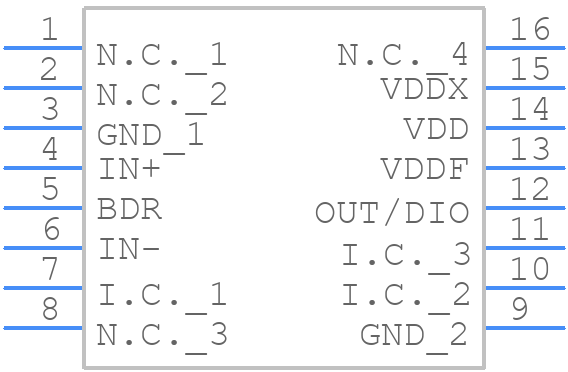

MAX1454AUE+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX1454AUE+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - U16+1
click to zoom
3D Models
MAX1454AUE+ - Analog Devices - 3D model - Small Outline Packages - U16+1
click to zoom

MAX1454AUE+ Details

  • Manufacturer Part Number:

    MAX1454AUE+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    16-TSSOP_4.4-4.4_MM

  • Package Description:

    ROHS COMPLIANT, TSSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    16-TSSOP_4.4-4.4_MM

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2011-07-14

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    R-PDSO-G16

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    4.4 mm

MAX1454AUE+ Frequently Asked Questions (FAQs)

  • A good PCB layout practice for the MAX1454AUE+ is to keep the analog and digital grounds separate, use a solid ground plane, and place the device close to the power supply. Additionally, use short traces and avoid routing digital signals near analog signals. Refer to the application note AN-1149 for more details.
  • To ensure proper power-up and initialization, make sure to follow the power-up sequence specified in the datasheet. Apply the power supply voltage (VCC) before the logic input voltage (VIN). Also, ensure that the input voltage (VIN) is stable and within the recommended range before applying the clock signal.
  • The MAX1454AUE+ can drive a maximum capacitive load of 100pF. Exceeding this limit may cause instability or oscillations in the output signal. If a higher capacitive load is required, consider adding a buffer or using a device with a higher drive capability.
  • To troubleshoot issues with the MAX1454AUE+ output signal, first verify that the input signal is correct and within the recommended range. Check the power supply voltage and ensure it is stable and within the recommended range. Use an oscilloscope to measure the output signal and look for signs of oscillation, distortion, or noise. Consult the datasheet and application notes for more troubleshooting tips.
  • Yes, the MAX1454AUE+ is compatible with lead-free soldering processes. The device is RoHS compliant and can withstand the higher temperatures required for lead-free soldering. However, ensure that the soldering process is done according to the recommended temperature profile to avoid damaging the device.
