MAX14589EEWL+T - Analog Devices

Description: Analogue Switch ICs High Density DPDT Analog Switches

Download MAX14589EEWL+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

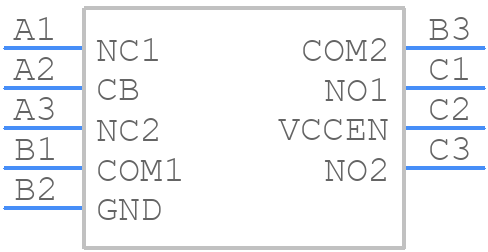

MAX14589EEWL+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX14589EEWL+T - Analog Devices PCB footprint - BGA - BGA - W91B1+7
click to zoom
3D Models
MAX14589EEWL+T - Analog Devices - 3D model - BGA - W91B1+7
click to zoom

MAX14589EEWL+T Details

  • Manufacturer Part Number:

    MAX14589EEWL+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    9-WLCSP-N/A

  • Package Description:

    WLP-9

  • Pin Count:

    9

  • Manufacturer Package Code:

    9-WLCSP-N/A

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2012-07-17

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    DPDT

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    -5.5 V

  • JESD-30 Code:

    S-PBGA-B9

  • Length:

    1.26 mm

  • Moisture Sensitivity Level:

    1

  • Normal Position:

    NC

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    9

  • Off-state Isolation-Nom:

    60 dB

  • On-state Resistance Match-Nom:

    0.005 Ω

  • On-state Resistance-Max (Ron):

    0.38 Ω

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    COMMON OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA9,3X3,16

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.69 mm

  • Signal Current-Max:

    0.5 A

  • Supply Current-Max (Isup):

    0.06 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    1.6 V

  • Supply Voltage-Nom (Vsup):

    2.5 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    2250000 ns

  • Switch-on Time-Max:

    10000000 ns

  • Switching:

    BREAK-BEFORE-MAKE

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin/Silver/Copper/Nickel (Sn/Ag/Cu/Ni)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.26 mm

MAX14589EEWL+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX14589EEWL+T involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the traces between the IC and the capacitors. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure proper power-up and configuration, it's recommended to follow a specific power-up sequence, which involves applying power to the VCC pin first, followed by the VDD pin. Additionally, the EN pin should be pulled high to enable the device, and the RST pin should be pulled low to reset the device.
  • The MAX14589EEWL+T has a maximum junction temperature of 150°C. To prevent overheating, it's recommended to provide adequate heat sinking, such as a thermal pad or a heat sink, and to ensure good airflow around the device. Additionally, the device should be operated within its recommended operating conditions, and the power dissipation should be calculated and managed accordingly.
  • To troubleshoot issues with the MAX14589EEWL+T, it's recommended to follow a systematic approach, which involves checking the power supply, verifying the clock signals, and checking the digital outputs. Additionally, using a logic analyzer or an oscilloscope can help identify issues with the device's operation. It's also recommended to consult the datasheet and application notes for troubleshooting guidelines.
  • The MAX14589EEWL+T is designed to meet EMI/EMC regulatory requirements, but it's still important to follow good design practices, such as using a shielded enclosure, minimizing loop areas, and using EMI filters. Additionally, it's recommended to follow the guidelines provided in the datasheet and application notes for EMI/EMC compliance.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX14589EEWL+T Overview

Use the download button to access the MAX14589EEWL+T schematic symbol, PCB footprint, and 3D model.
