MAX14611ETD+T - Analog Devices

Description: MAXIM INTEGRATED PRODUCTS - MAX14611ETD+T - LEVEL TRANSLATOR, BIDIR, 4-CH, TDFN-14

Download MAX14611ETD+T Model

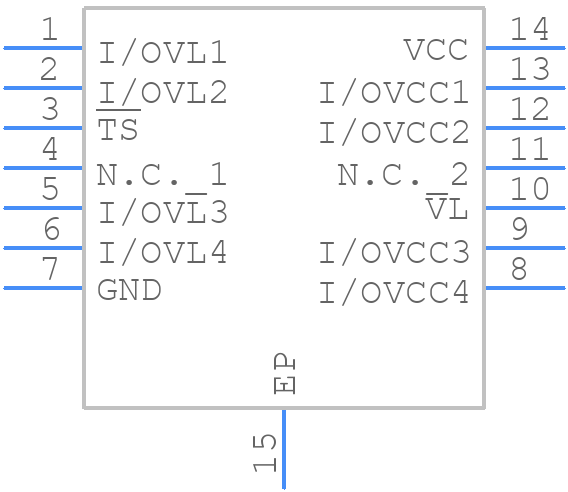

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MAX14611ETD+T - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - MAX14611ETD+T
click to zoom
3D Models
MAX14611ETD+T - Analog Devices  - 3D model - Small Outline No-lead - MAX14611ETD+T
click to zoom

MAX14611ETD+T Details

  • Manufacturer Part Number:

    MAX14611ETD+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    14-LFCSP-3X3X0.75

  • Package Description:

    TDFN-14

  • Pin Count:

    14

  • Manufacturer Package Code:

    14-LFCSP-3X3X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2012-04-20

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Delay-Max:

    150 ns

  • Interface IC Type:

    VOLTAGE LEVEL TRANSLATOR

  • JESD-30 Code:

    S-PDSO-N14

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    4

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Latch or Register:

    NONE

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC14,.12,16

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max:

    0.035 mA

  • Supply Voltage-Max:

    5 V

  • Supply Voltage-Min:

    0.9 V

  • Supply Voltage-Nom:

    1.8 V

  • Supply Voltage1-Max:

    5.5 V

  • Supply Voltage1-Min:

    1.65 V

  • Supply Voltage1-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

MAX14611ETD+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX14611ETD+T involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated layer for the analog signals, and to minimize the length of the traces connecting the device to the power supply and load.
  • To ensure proper power-up and initialization, it's recommended to follow a specific power-up sequence. First, apply the power supply voltage (VCC) to the device, then apply the input voltage (VIN) to the input pins. The device will then automatically initialize and start operating. Additionally, it's recommended to add a power-on reset circuit to ensure the device is properly reset during power-up.
  • The MAX14611ETD+T can drive a maximum capacitive load of 10nF. Exceeding this limit may cause the device to oscillate or become unstable. If a larger capacitive load is required, it's recommended to add an external buffer or amplifier to isolate the load from the device.
  • To troubleshoot issues with the MAX14611ETD+T, start by verifying the power supply voltage and input voltage are within the recommended ranges. Check the PCB layout for any errors or noise coupling issues. Use an oscilloscope to measure the output voltage and input voltage waveforms to identify any anomalies. If the issue persists, try replacing the device or consulting the datasheet and application notes for further guidance.
  • The MAX14611ETD+T is rated for operation up to 125°C. However, the device's performance and reliability may degrade at high temperatures. It's recommended to derate the device's output current and voltage at high temperatures to ensure reliable operation. Consult the datasheet and application notes for specific guidance on using the device in high-temperature environments.
