MAX14753EUE+T footprint, schematic symbol and 3D model by Analog Devices

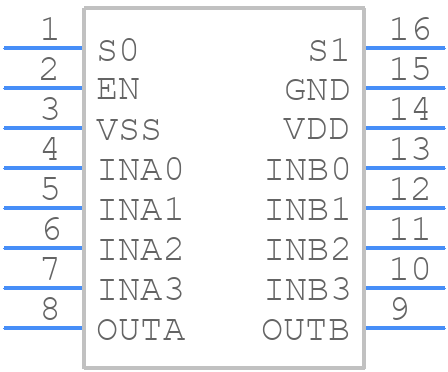

Symbol

click to zoom

PCB Footprints

click to zoom

3D Models

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for MAX14753EUE+T
Part Number MAX14753EUE+T
Manufacturer Analog Devices
Pin Count 16
Part Category Integrated Circuit
Package Category Small Outline Packages
Footprint Name Small Outline Packages - U16+1
Released Date Dec 12, 2025
Last Modified Date Dec 12, 2025 2:18 AM UTC
Pinout / Pin List Click Here (Member Only)

MAX14753EUE+T Details

Manufacturer Part Number:
MAX14753EUE+T
Brand Name:
Analog Devices Inc
Rohs Code:
Yes
Part Life Cycle Code:
Active
Part Package Code:
16-TSSOP_4.4-4.4_MM
Pin Count:
16
Manufacturer Package Code:
16-TSSOP_4.4-4.4_MM
Country Of Origin:
Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA
HTS Code:
8542.39.00.60
Date Of Intro:
2008-08-22
Manufacturer:
Analog Devices Inc
YTEOL:
10
Analog IC - Other Type:
DIFFERENTIAL MULTIPLEXER
JESD-30 Code:
R-PDSO-G16
JESD-609 Code:
e3
Length:
5 mm
Moisture Sensitivity Level:
1
Neg Supply Voltage-Max (Vsup):
-36 V
Neg Supply Voltage-Min (Vsup):
-10 V
Neg Supply Voltage-Nom (Vsup):
-35 V
Normal Position:
NO
Number of Channels:
4
Number of Functions:
1
Number of Terminals:
16
Off-state Isolation-Nom:
65 dB
On-state Resistance Match-Nom:
0.5 Ω
On-state Resistance-Max (Ron):
130 Ω
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Output:
SEPARATE OUTPUT
Package Body Material:
PLASTIC/EPOXY
Package Code:
TSSOP
Package Equivalence Code:
TSSOP16,.25
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
1.1 mm
Signal Current-Max:
0.1 A
Supply Current-Max (Isup):
600 mA
Supply Voltage-Max (Vsup):
36 V
Supply Voltage-Min (Vsup):
10 V
Supply Voltage-Nom (Vsup):
35 V
Surface Mount:
YES
Switch-off Time-Max:
2000 ns
Switch-on Time-Max:
25000 ns
Switching:
BREAK-BEFORE-MAKE
Technology:
CMOS
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Matte Tin (Sn) - annealed
Terminal Form:
GULL WING
Terminal Pitch:
0.635 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
4.4 mm

MAX14753EUE+T Frequently Asked Questions (FAQs)

A good PCB layout for the MAX14753EUE+T involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated layer for the analog signals, and to minimize the length of the traces connecting the device to the power supply and other components.
The MAX14753EUE+T requires a single 3.3V power supply, and it's recommended to use a low-dropout linear regulator (LDO) to power the device. The power sequencing requirements involve powering up the device in the following order: VCC, then EN, and finally the input signals. It's also important to ensure that the power supply is stable and has a low noise floor to prevent any issues with the device's operation.
The recommended input signal range for the MAX14753EUE+T is 0V to VCC, and the input impedance is typically around 1kΩ. It's also important to ensure that the input signals are properly terminated and that the source impedance is matched to the input impedance of the device to prevent any signal reflections or attenuation.
The MAX14753EUE+T has a programmable gain amplifier (PGA) that can be configured for different gain settings using the GAIN pin. The gain can be set to 1, 2, 4, or 8 using a resistor divider network connected to the GAIN pin. The trade-offs involve noise, bandwidth, and power consumption, with higher gain settings resulting in higher noise and power consumption, but also providing a wider bandwidth.
The MAX14753EUE+T has built-in ESD protection diodes on all pins, which can withstand up to ±2kV of ESD voltage. Additionally, the device has latch-up prevention circuitry that prevents the device from latching up in the event of an overvoltage or overcurrent condition. However, it's still recommended to follow proper ESD handling procedures and to use ESD protection devices on the PCB to prevent any damage to the device.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

MAX14753EUE+T Overview

Use the download button to access the MAX14753EUE+T schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like MAX14, or try a keyword search, such as Multiplexers or Switches

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
