MAX14757EUE+T - Analog Devices

Description: Analog Switch ICs Quad SPST +70V Analog Switches

Download MAX14757EUE+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

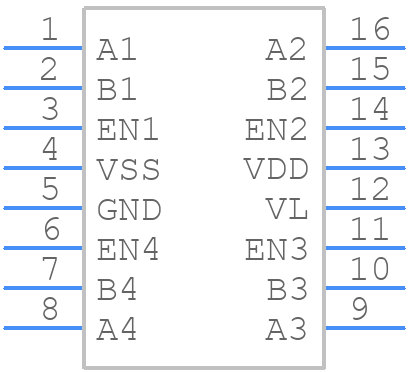

MAX14757EUE+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX14757EUE+T - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 16-Pin TSSOP
click to zoom
3D Models
MAX14757EUE+T - Analog Devices - 3D model - Small Outline Packages - 16-Pin TSSOP
click to zoom

MAX14757EUE+T Details

  • Manufacturer Part Number:

    MAX14757EUE+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    16-TSSOP_4.4-4.4_MM

  • Package Description:

    TSSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    16-TSSOP_4.4-4.4_MM

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2011-01-17

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    DPDT

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage-Max (Vsup):

    -35 V

  • Neg Supply Voltage-Min (Vsup):

    -10 V

  • Normal Position:

    NO

  • Number of Channels:

    2

  • Number of Functions:

    4

  • Number of Terminals:

    16

  • Off-state Isolation-Nom:

    65 dB

  • On-state Resistance-Max (Ron):

    10 Ω

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    SEPARATE OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Signal Current-Max:

    0.1 A

  • Supply Current-Max (Isup):

    0.8 mA

  • Supply Voltage-Max (Vsup):

    35 V

  • Supply Voltage-Min (Vsup):

    10 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    3000 ns

  • Switch-on Time-Max:

    60000 ns

  • Switching:

    BREAK-BEFORE-MAKE

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.635 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

MAX14757EUE+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX14757EUE+T involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated layer for the analog signals, and to minimize the length of the traces connecting the device to the power supply and other components.
  • The MAX14757EUE+T requires a single 3.3V power supply, and it's recommended to use a low-dropout linear regulator (LDO) to power the device. The power sequencing requirements are not critical, but it's recommended to power up the device after the power supply has stabilized. Additionally, it's recommended to add decoupling capacitors close to the device to filter out noise and ensure stable operation.
  • The MAX14757EUE+T has an operating temperature range of -40°C to +125°C, making it suitable for use in a wide range of applications, including industrial and automotive systems.
  • The MAX14757EUE+T can be programmed using the I²C interface, and the device has a built-in EEPROM that allows for storing configuration data. The device can also be programmed using the SPI interface, but this requires an external EEPROM. The programming interface is typically done using a microcontroller or a dedicated programming tool.
  • The MAX14757EUE+T has built-in ESD protection on all pins, with a human-body model (HBM) rating of ±2kV and a charged-device model (CDM) rating of ±1kV. Additionally, the device has latch-up prevention measures to prevent damage from overvoltage or overcurrent conditions.
