MAX14850ASE+ - Analog Devices

Description: MAXIM INTEGRATED PRODUCTS - MAX14850ASE+ - DIGITAL ISOLATOR, 6-CH, 30NS, NSOIC-16

Download MAX14850ASE+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

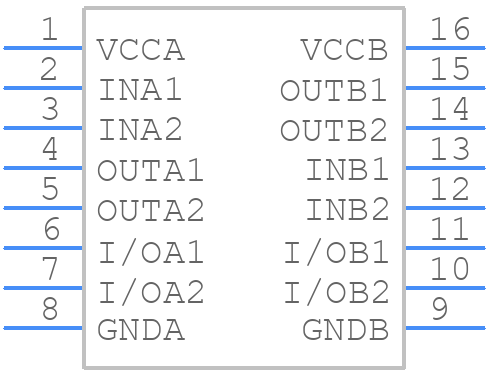

MAX14850ASE+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX14850ASE+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 16-SOIC (0.154", 3.90mm Width)
click to zoom
3D Models
MAX14850ASE+ - Analog Devices - 3D model - Small Outline Packages - 16-SOIC (0.154", 3.90mm Width)
click to zoom

MAX14850ASE+ Details

  • Manufacturer Part Number:

    MAX14850ASE+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    16-SOIC_N-150_MIL

  • Pin Count:

    16

  • Manufacturer Package Code:

    16-SOIC_N-150_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2012-03-27

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Interface IC Type:

    DIGITAL ISOLATOR

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    9.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

MAX14850ASE+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX14850ASE+ involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated layer for the analog signals, and to minimize the length of the traces connecting the device to the power supply and other components.
  • To ensure the MAX14850ASE+ is properly powered, make sure to provide a clean and stable power supply voltage within the recommended range of 4.5V to 5.5V. Also, decouple the power supply pins with 0.1uF and 10uF capacitors to reduce noise and ripple. Finally, ensure that the power supply can provide enough current to support the device's operating current, which is typically around 10mA.
  • The MAX14850ASE+ is capable of supporting data rates up to 100Mbps, but the actual data rate achieved will depend on the specific application, PCB layout, and signal quality. In general, it's recommended to limit the data rate to 50Mbps or less to ensure reliable operation and minimize errors.
  • To troubleshoot issues with the MAX14850ASE+, start by checking the power supply voltage and ensuring it's within the recommended range. Next, verify that the device is properly configured and that the clock and data signals are correct. Use an oscilloscope to check the signal quality and look for any signs of noise or distortion. Finally, consult the datasheet and application notes for guidance on specific troubleshooting techniques and common pitfalls to avoid.
  • The MAX14850ASE+ is designed to operate with 5V logic, but it can be used with 3.3V logic with some limitations. The device's input thresholds are compatible with 3.3V logic, but the output voltage levels may not be sufficient to drive 3.3V logic devices. In general, it's recommended to use level translators or buffers to ensure reliable operation when interfacing with 3.3V logic devices.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX14850ASE+ Overview

Use the download button to access the MAX14850ASE+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX14, or try a keyword search, such as Other Interface ICs

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
