MAX14878AWE+ - Analog Devices

Description: MAXIM INTEGRATED PRODUCTS - MAX14878AWE+ - CAN TRANSCEIVER, 1MBPS, WSOIC-16

Download MAX14878AWE+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

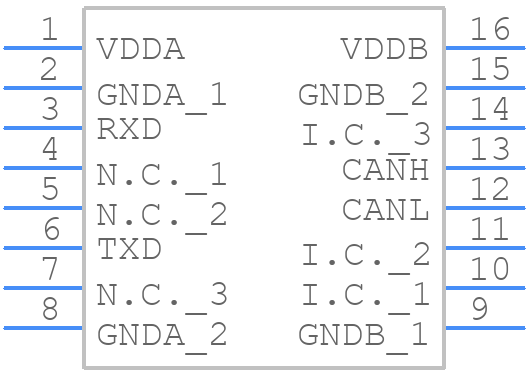

MAX14878AWE+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX14878AWE+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MAX 16 Wide SO
click to zoom
3D Models
MAX14878AWE+ - Analog Devices - 3D model - Small Outline Packages - MAX 16 Wide SO
click to zoom

MAX14878AWE+ Details

  • Manufacturer Part Number:

    MAX14878AWE+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    16-SOIC_W-300_MIL

  • Package Description:

    SOIC-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    16-SOIC_W-300_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2017-10-19

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Data Rate:

    1000 Mbps

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    10.3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Number of Transceivers:

    1

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    2.65 mm

  • Supply Current-Max:

    0.83 mA

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    CAN TRANSCEIVER

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

MAX14878AWE+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX14878AWE+ involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated layer for the analog signals, and to minimize the length of the traces between the device and the power supply.
  • To ensure proper power-up and configuration, make sure to follow the recommended power-up sequence, which involves applying the power supply voltage (VCC) before the input voltage (VIN). Also, ensure that the EN pin is pulled high to enable the device, and the RST pin is pulled low to reset the device. Finally, configure the device using the SPI interface according to the datasheet.
  • The MAX14878AWE+ can deliver up to 1A of output current per channel, but this is dependent on the input voltage, output voltage, and the thermal conditions of the device. It's recommended to check the datasheet for the specific current limits and thermal derating curves to ensure safe operation.
  • To troubleshoot issues with the MAX14878AWE+, start by checking the power supply voltage and input voltage levels. Verify that the device is properly configured and enabled. Use an oscilloscope to check the output voltage and current waveforms. If issues persist, check the PCB layout and ensure that it meets the recommended layout guidelines. Finally, consult the datasheet and application notes for troubleshooting guides and FAQs.
  • The MAX14878AWE+ is rated for operation up to 125°C, but its performance and reliability may degrade at high temperatures. It's recommended to check the datasheet for the specific temperature derating curves and to ensure that the device is properly heat-sinked and cooled. Additionally, consider using a thermally-enhanced package or a heat-spreaded PCB to improve thermal performance.
