MAX14900EAGM+CKT - Analog Devices

Description: MAXIM INTEGRATED PRODUCTS - MAX14900EAGM+CKT - POWER LOAD SWITCH, 36V, QFN-48

Download MAX14900EAGM+CKT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

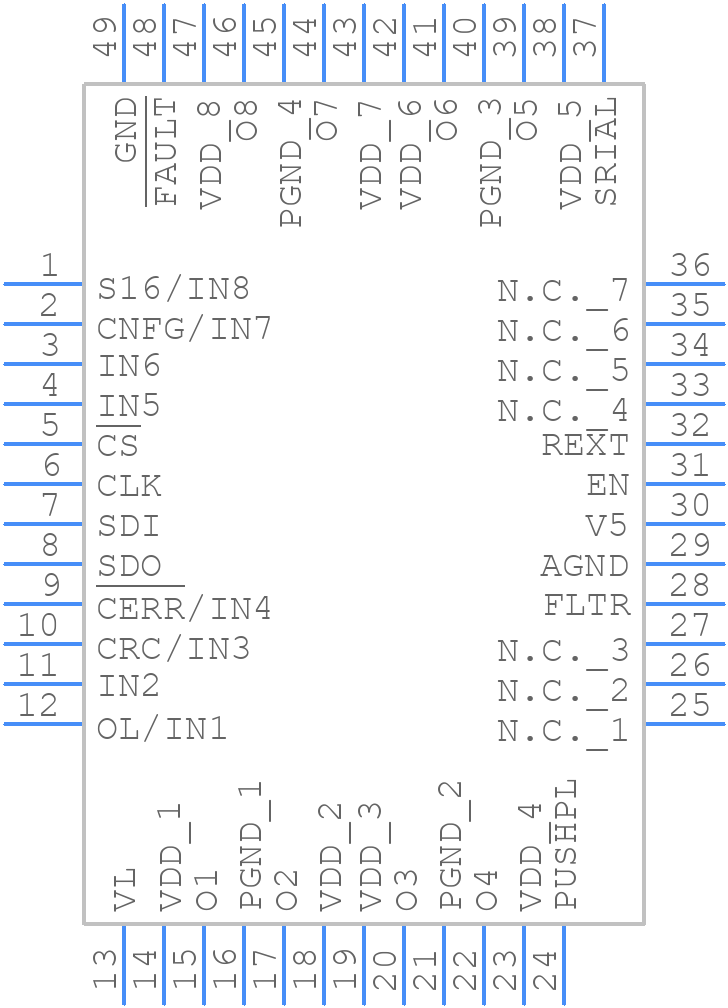

MAX14900EAGM+CKT - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX14900EAGM+CKT - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - MAX14900EAGM+CKT
click to zoom
3D Models
MAX14900EAGM+CKT - Analog Devices - 3D model - Quad Flat No-Lead - MAX14900EAGM+CKT
click to zoom

MAX14900EAGM+CKT Details

  • Manufacturer Part Number:

    MAX14900EAGM+CKT

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    48-LFCSP-7X7X0.85

  • Package Description:

    QFN-48

  • Pin Count:

    48

  • Manufacturer Package Code:

    48-LFCSP-7X7X0.85

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2014-11-05

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Built-in Protections:

    TRANSIENT; THERMAL; UNDER VOLTAGE

  • Driver Number of Bits:

    8

  • Input Characteristics:

    SCHMITT TRIGGER

  • Interface IC Type:

    BUFFER OR INVERTER BASED PERIPHERAL DRIVER

  • JESD-30 Code:

    S-XQCC-N48

  • JESD-609 Code:

    e3

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    8

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    PUSH-PULL

  • Output Current Flow Direction:

    SOURCE AND SINK

  • Output Peak Current Limit-Nom:

    1.7 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.9 mm

  • Supply Current-Max:

    1.5 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    5 V

  • Supply Voltage1-Max:

    36 V

  • Supply Voltage1-Min:

    10 V

  • Supply Voltage1-Nom:

    24 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Turn-off Time:

    2 µs

  • Turn-on Time:

    1 µs

  • Width:

    7 mm

MAX14900EAGM+CKT Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX14900EAGM+CKT involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated layer for the analog signals, and to minimize the length of the traces connecting the device to the power supply and other components.
  • The MAX14900EAGM+CKT requires a single 3.3V power supply, and it's recommended to use a low-dropout linear regulator (LDO) to power the device. The power sequencing requirements involve powering up the device in the following order: VCC, then VDD, and finally the digital inputs. It's also important to ensure that the power supply is stable and has a low noise floor to prevent errors in the device's operation.
  • The MAX14900EAGM+CKT has an operating temperature range of -40°C to +125°C. As the temperature increases, the device's performance may be affected, including a decrease in accuracy and an increase in power consumption. It's recommended to operate the device within the specified temperature range to ensure optimal performance and reliability.
  • To troubleshoot common issues with the MAX14900EAGM+CKT, start by checking the power supply and ensuring that it's stable and within the recommended range. Next, verify that the device is properly configured and that the input signals are correct. Use a logic analyzer or oscilloscope to debug the digital communication signals, and check the device's output voltages using a multimeter or oscilloscope. If the issue persists, consult the datasheet and application notes for further guidance.
  • The MAX14900EAGM+CKT has built-in ESD protection diodes on all pins, which can withstand electrostatic discharges up to 2kV according to the Human Body Model (HBM). To prevent latch-up, it's recommended to use a low-impedance power supply, avoid overvoltage conditions, and ensure that the device is operated within the specified temperature range.
