MAX14915AFM+ - Analog Devices

Description: Power Switch ICs - Power Distribution Industrial Octal High Side Driver with Diagnostics

Download MAX14915AFM+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

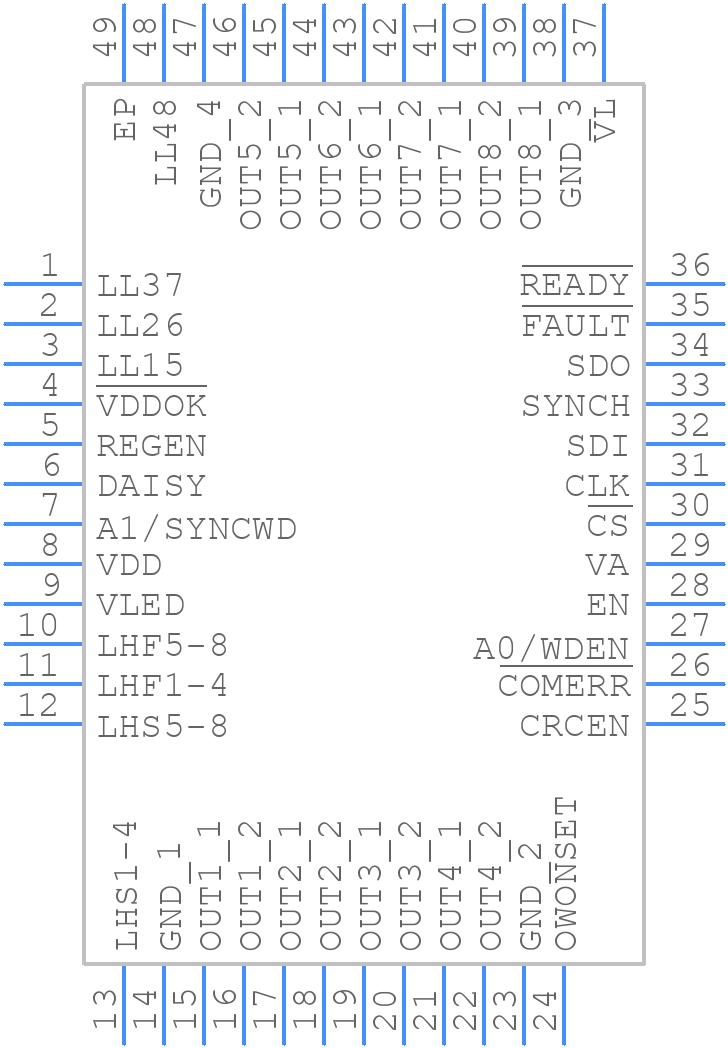

MAX14915AFM+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX14915AFM+ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - F486A6F-1
click to zoom
3D Models
MAX14915AFM+ - Analog Devices - 3D model - Quad Flat No-Lead - F486A6F-1
click to zoom

MAX14915AFM+ Details

  • Manufacturer Part Number:

    MAX14915AFM+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    48-LFCSP-6X6X0.9

  • Pin Count:

    48

  • Manufacturer Package Code:

    48-LFCSP-6X6X0.9

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2018-12-06

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Interface IC Type:

    BUFFER OR INVERTER BASED PERIPHERAL DRIVER

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Time@Peak Reflow Temperature-Max (s):

    30

MAX14915AFM+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX14915AFM+ involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the traces between the IC and the external components. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended. Additionally, it's essential to follow the layout guidelines provided in the datasheet and application notes.
  • To ensure the reliability of the MAX14915AFM+ in high-temperature applications, it's essential to follow proper thermal management techniques. This includes using a heat sink, ensuring good airflow, and keeping the IC away from heat sources. Additionally, the device should be operated within its recommended operating temperature range, and the junction temperature should be monitored to prevent overheating.
  • The recommended power-up sequence for the MAX14915AFM+ is to first apply the analog supply voltage (VCC) and then the digital supply voltage (VDD). The power-up sequence should be controlled to prevent the digital outputs from switching before the analog circuitry is fully powered up. A power-up sequence circuit or a supervisor IC can be used to ensure a controlled power-up sequence.
  • To troubleshoot issues with the MAX14915AFM+, start by verifying that the power supplies are correct and stable. Check the input and output voltages, and ensure that the device is operated within its recommended operating conditions. Use an oscilloscope to check the waveforms and signal integrity. If the issue persists, consult the datasheet and application notes, and contact Analog Devices' technical support if necessary.
  • Yes, the MAX14915AFM+ can be used in a redundant or fault-tolerant system. The device has built-in fault detection and reporting capabilities, and it can be configured to provide redundant outputs. Additionally, the device's analog and digital outputs can be connected to a redundant system or a fault-tolerant architecture to ensure continued operation in the event of a failure.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX14915AFM+ Overview

Use the download button to access the MAX14915AFM+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX14, or try a keyword search, such as Peripheral Drivers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
