MAX14916AAFM+T - Analog Devices

Description: Compact Industrial Octal 1A/Quad 2A High-Side Switch with Diagnostics

Download MAX14916AAFM+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

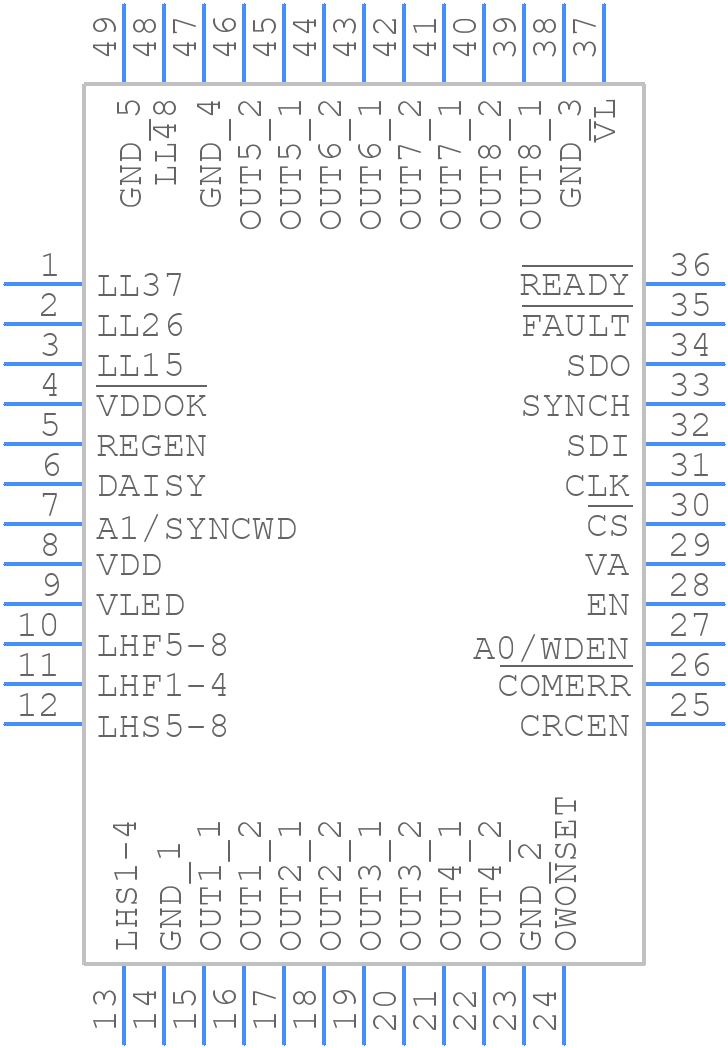

MAX14916AAFM+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX14916AAFM+T - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - F486A6F+1_2024
click to zoom
3D Models
MAX14916AAFM+T - Analog Devices - 3D model - Quad Flat No-Lead - F486A6F+1_2024
click to zoom

MAX14916AAFM+T Details

  • Manufacturer Part Number:

    MAX14916AAFM+T

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Interface IC Type:

    BUFFER OR INVERTER BASED PERIPHERAL DRIVER

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Time@Peak Reflow Temperature-Max (s):

    30

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX14916AAFM+T Overview

Use the download button to access the MAX14916AAFM+T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX14, or try a keyword search, such as Peripheral Drivers
