MAX14918AATG+T - Analog Devices

Description: +5V (V5) or +7V to +65V (VDD) Supply Voltage Operation • 700mA DC Capability Per Channel across Temperature Range • 140mΩ (typ) On-Resistance Per Channel • Settable Load Current Limit 100mA (typ) to 900mA (typ) • +5V to +48V Load Voltage Range • 2x Inrush Load Current Option for 10ms (min) • Robust Design Features • Internal Inductive Energy Clamp at +55V (typ) • Short-Circuit Protection at OUT_ of up to +49V • Reverse Current Detection against Load-Supply Miswiring • ±1.2kV/42Ω Surge Protecti

Download MAX14918AATG+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

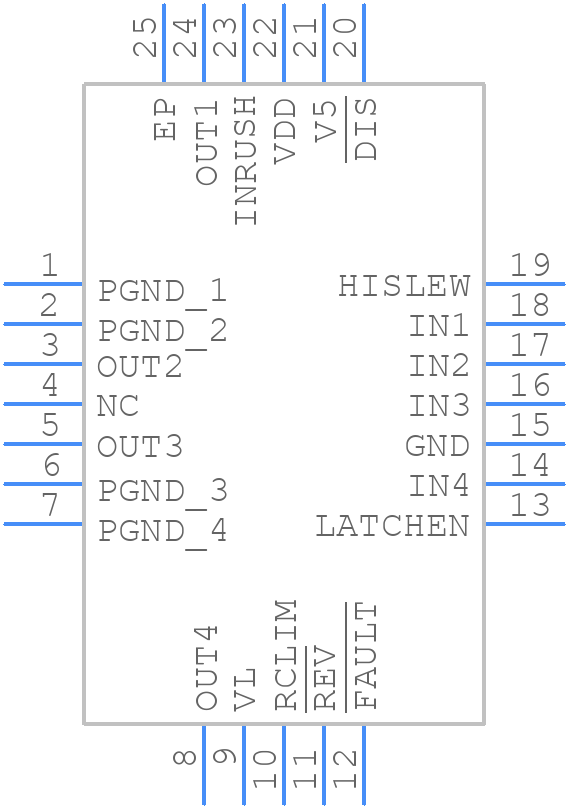

MAX14918AATG+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX14918AATG+T - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - T2445+2C
click to zoom
3D Models
MAX14918AATG+T - Analog Devices - 3D model - Quad Flat No-Lead - T2445+2C
click to zoom

MAX14918AATG+T Details

  • Manufacturer Part Number:

    MAX14918AATG+T

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Interface IC Type:

    BUFFER OR INVERTER BASED PERIPHERAL DRIVER

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Time@Peak Reflow Temperature-Max (s):

    30

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX14918AATG+T Overview

Use the download button to access the MAX14918AATG+T schematic symbol, PCB footprint, and 3D model.
