MAX14919AATP+ - Analog Devices

Description: Industrial-Protected Quad-Channel Low-Side Switch

Download MAX14919AATP+ Model

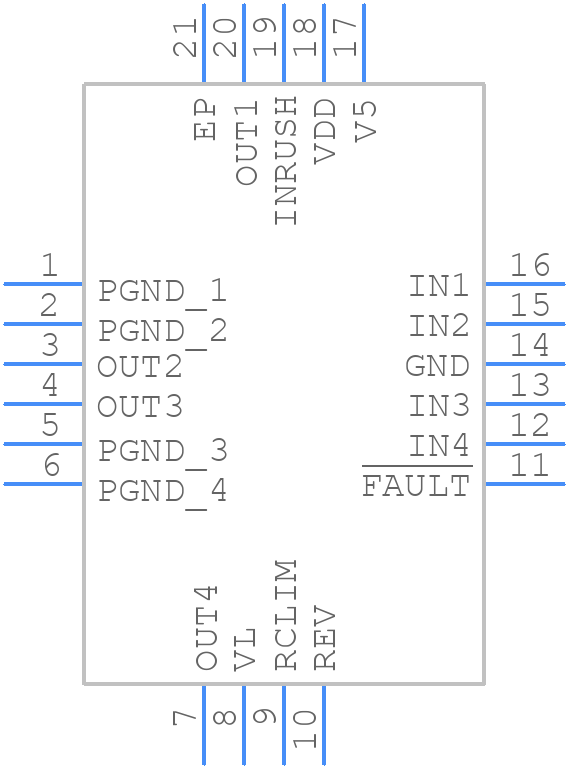

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MAX14919AATP+ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - T2045+1C
click to zoom
3D Models
MAX14919AATP+ - Analog Devices  - 3D model - Quad Flat No-Lead - T2045+1C
click to zoom

MAX14919AATP+ Details

  • Manufacturer Part Number:

    MAX14919AATP+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    20-LFCSP-4X5X0.75

  • Package Description:

    TQFN-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    20-LFCSP-4X5X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2020-11-25

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Built-in Protections:

    SHORT CIRCUIT; OVERLOAD; TRANSIENT

  • Driver Number of Bits:

    4

  • Interface IC Type:

    BUFFER OR INVERTER BASED PERIPHERAL DRIVER

  • JESD-30 Code:

    R-XQCC-N20

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    4

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current Flow Direction:

    SINK

  • Output Peak Current Limit-Nom:

    0.8 A

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC20,.16X.2,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max:

    3 mA

  • Supply Voltage-Max:

    60 V

  • Supply Voltage-Min:

    7 V

  • Supply Voltage-Nom:

    24 V

  • Supply Voltage1-Max:

    5.5 V

  • Supply Voltage1-Min:

    4.5 V

  • Supply Voltage1-Nom:

    5 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Turn-off Time:

    0.3 µs

  • Turn-on Time:

    0.3 µs

  • Width:

    4 mm

MAX14919AATP+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX14919AATP+ involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated layer for the analog signals to minimize noise and interference.
  • The MAX14919AATP+ requires a single 3.3V power supply. It's recommended to power the device with a low-noise, low-dropout regulator. The power sequencing requirements are not critical, but it's recommended to power the device after the analog power supply is stable.
  • The maximum cable length supported by the MAX14919AATP+ depends on the specific application and the type of cable used. In general, the device can support cable lengths up to 10 meters. However, longer cable lengths can affect signal integrity due to signal attenuation and reflections. It's recommended to use a shielded twisted-pair cable and to terminate the cable properly to minimize signal reflections.
  • The MAX14919AATP+ is a highly configurable device that can be tailored to specific applications. The device can be configured using the SPI interface to set the channel configuration, gain, and filter settings. The specific configuration will depend on the application requirements, such as the type of sensors used, the signal frequency, and the noise environment.
  • The MAX14919AATP+ has built-in ESD protection diodes on all pins, which can withstand up to ±2kV of ESD voltage. Additionally, the device has latch-up prevention circuitry to prevent damage from overvoltage conditions. However, it's still recommended to follow proper ESD handling procedures when handling the device and to use ESD protection devices in the system design.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX14919AATP+ Overview

Use the download button to access the MAX14919AATP+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX14, or try a keyword search, such as Peripheral Drivers
