MAX14919AUP+ - Analog Devices

Description: Industrial-Protected Quad-Channel Low-Side Switch

Download MAX14919AUP+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

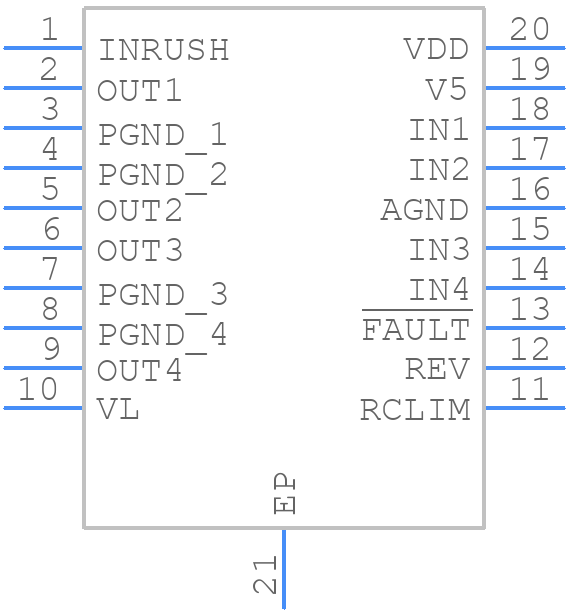

MAX14919AUP+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX14919AUP+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MAX14919AUP+
click to zoom
3D Models
MAX14919AUP+ - Analog Devices - 3D model - Small Outline Packages - MAX14919AUP+
click to zoom

MAX14919AUP+ Details

  • Manufacturer Part Number:

    MAX14919AUP+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    20-TSSOP_4.4-4.4_MM

  • Package Description:

    TSSOP-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    20-TSSOP_4.4-4.4_MM

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2020-11-25

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    3

  • Built-in Protections:

    SHORT CIRCUIT; OVERLOAD; TRANSIENT

  • Driver Number of Bits:

    4

  • Interface IC Type:

    BUFFER OR INVERTER BASED PERIPHERAL DRIVER

  • JESD-30 Code:

    R-XQCC-N20

  • JESD-609 Code:

    e3

  • Length:

    6.5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    4

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current Flow Direction:

    SINK

  • Output Peak Current Limit-Nom:

    0.8 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP20,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max:

    3 mA

  • Supply Voltage-Max:

    60 V

  • Supply Voltage-Min:

    7 V

  • Supply Voltage-Nom:

    24 V

  • Supply Voltage1-Max:

    5.5 V

  • Supply Voltage1-Min:

    4.5 V

  • Supply Voltage1-Nom:

    5 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Turn-off Time:

    0.3 µs

  • Turn-on Time:

    0.3 µs

  • Width:

    4.4 mm

MAX14919AUP+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX14919AUP+ involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the traces between the IC and the power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure proper power-up and configuration, follow the recommended power-up sequence, which is to apply VCC first, followed by VDD. Also, make sure to configure the device correctly by setting the correct logic levels on the control pins (e.g., EN, RST, and INT) and ensuring that the input voltage is within the recommended range.
  • The MAX14919AUP+ can sink or source up to 10mA of current per output pin. However, it's recommended to limit the current to 5mA or less to ensure reliable operation and to prevent overheating.
  • To troubleshoot issues with the MAX14919AUP+, start by checking the power supply voltages and ensuring that they are within the recommended range. Then, verify that the device is properly configured and that the input signals are correct. Use a logic analyzer or oscilloscope to monitor the device's output signals and identify any anomalies. Finally, consult the datasheet and application notes for troubleshooting guides and FAQs.
  • The MAX14919AUP+ is compatible with both 3.3V and 5V logic levels. However, the device's output voltage is dependent on the supply voltage (VCC), so ensure that the logic levels of the connected devices are compatible with the output voltage of the MAX14919AUP+.
