MAX14930BASE+T - Analog Devices

Description: Digital Isolators 4 channel (4/0 config.), 25Mbps, 2.5kVrms digital isolator, NSOIC-16, -40C to +125C

Download MAX14930BASE+T Model

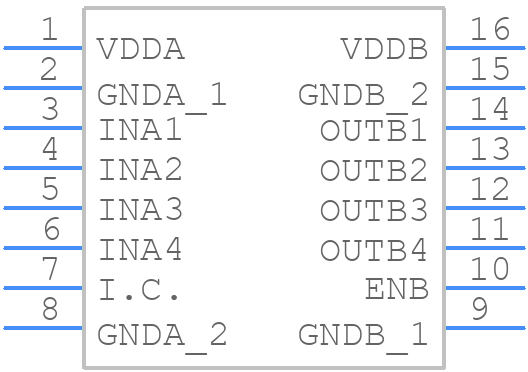

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MAX14930BASE+T - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 16 Narrow SO
click to zoom
3D Models
MAX14930BASE+T - Analog Devices  - 3D model - Small Outline Packages - 16 Narrow SO
click to zoom

MAX14930BASE+T Details

  • Manufacturer Part Number:

    MAX14930BASE+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    16-SOIC_N-150_MIL

  • Package Description:

    SOIC-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    16-SOIC_N-150_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2014-10-24

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    Also has VDDB supply from 1.71V to 5.5V

  • Interface IC Type:

    DIGITAL ISOLATOR

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    9.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    4

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    1.71 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

MAX14930BASE+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX14930BASE+T involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated layer for the analog signals, and to minimize the length of the traces connecting the device to the power supply and other components.
  • The MAX14930BASE+T requires a single 3.3V or 5V power supply, and it's recommended to use a low-dropout linear regulator (LDO) to power the device. The power sequencing requirements involve powering up the device in the following order: VCC, then VDD, and finally the digital inputs. It's also important to ensure that the power supply is stable and has a low noise floor to prevent errors in the device's operation.
  • The MAX14930BASE+T has an operating temperature range of -40°C to +125°C. The device's performance may be affected at higher temperatures, with a decrease in accuracy and an increase in power consumption. It's recommended to operate the device within the specified temperature range to ensure optimal performance and reliability.
  • To troubleshoot common issues with the MAX14930BASE+T, start by checking the power supply and ensuring it's stable and within the recommended range. Verify that the device is properly configured and that the input signals are correct. Use a logic analyzer or oscilloscope to debug the digital signals and ensure that the device is communicating correctly with the microcontroller. Check the datasheet for specific troubleshooting guidelines and consult with Analog Devices' support team if necessary.
  • The MAX14930BASE+T has built-in ESD protection on all pins, with a human-body model (HBM) rating of ±2kV and a charged-device model (CDM) rating of ±1kV. To prevent latch-up, it's recommended to use a low-impedance power supply, avoid overvoltage conditions, and ensure that the device is operated within the specified temperature range.
