MAX14930CASE+ - Analog Devices

Description: Digital Isolators 4 channel (4/0 config.), 150Mbps, 2.5kVrms digital isolator, NSOIC-16, -40C TO +125C

Download MAX14930CASE+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

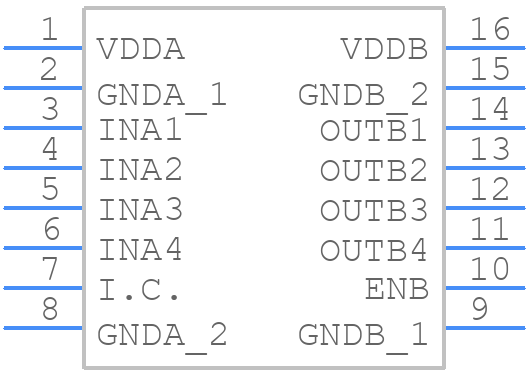

MAX14930CASE+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX14930CASE+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - S16M+11
click to zoom
3D Models
MAX14930CASE+ - Analog Devices - 3D model - Small Outline Packages - S16M+11
click to zoom

MAX14930CASE+ Details

  • Manufacturer Part Number:

    MAX14930CASE+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    16-SOIC_N-150_MIL

  • Package Description:

    SOIC-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    16-SOIC_N-150_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2014-10-24

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Interface IC Type:

    DIGITAL ISOLATOR

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    9.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    1.71 V

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

MAX14930CASE+ Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the MAX14930CASE+ is to use a 4-layer board with a solid ground plane, and to keep the analog and digital signals separate. Additionally, it's recommended to use a low-ESR capacitor for the VCC bypass and to place it as close as possible to the VCC pin.
  • To ensure reliable communication between the MAX14930CASE+ and the microcontroller, make sure to use a proper SPI interface, with correct clock polarity and phase, and to use a pull-up resistor on the CS pin. Also, ensure that the microcontroller's SPI clock frequency is within the recommended range of 1MHz to 10MHz.
  • The maximum cable length supported by the MAX14930CASE+ depends on the specific application and the type of cable used. However, as a general guideline, the MAX14930CASE+ can support cable lengths up to 10 meters at a data rate of 100Mbps. For longer cable lengths, it's recommended to use repeaters or active cables.
  • To troubleshoot issues with the MAX14930CASE+, start by checking the power supply voltage and ensuring that it's within the recommended range. Then, check the SPI interface signals using an oscilloscope to ensure that the clock and data signals are correct. Also, check the device's registers using the SPI interface to ensure that they are configured correctly.
  • Yes, the MAX14930CASE+ is compatible with industrial temperature ranges. It's specified to operate from -40°C to +85°C, making it suitable for use in industrial applications.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX14930CASE+ Overview

Use the download button to access the MAX14930CASE+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX14, or try a keyword search, such as Other Interface ICs

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
