MAX14930DASE+ - Analog Devices

Description: Digital Isolators 4 channel (4/0 config), 1Mbps, 2.5kVrms digital isolator, default low, NSOIC-16, -40C to +125C

Download MAX14930DASE+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

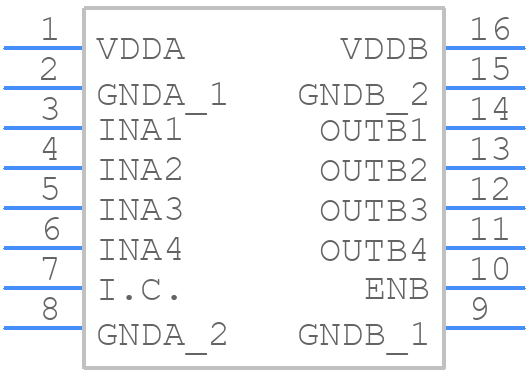

MAX14930DASE+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX14930DASE+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - S16M+11
click to zoom
3D Models
MAX14930DASE+ - Analog Devices - 3D model - Small Outline Packages - S16M+11
click to zoom

MAX14930DASE+ Details

  • Manufacturer Part Number:

    MAX14930DASE+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    16-SOIC_N-150_MIL

  • Package Description:

    SOIC-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    16-SOIC_N-150_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2014-10-24

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Interface IC Type:

    DIGITAL ISOLATOR

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    9.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    1.71 V

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

MAX14930DASE+ Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the MAX14930DASE+ is to use a 4-layer board with a solid ground plane, and to keep the analog and digital signals separate. Additionally, it's recommended to use a low-ESR capacitor for the VCC bypass and to place it as close as possible to the VCC pin.
  • To configure the MAX14930DASE+ for I2C communication, you need to connect the SCL pin to the I2C clock line, the SDA pin to the I2C data line, and the ADDR pin to a logic level that sets the device address. You also need to ensure that the I2C bus is properly terminated and that the clock frequency is within the specified range.
  • The MAX14930DASE+ can sink or source up to 20mA of current per GPIO pin, and up to 50mA of current per port (A or B). However, the total current drawn from the device should not exceed 150mA.
  • To use the interrupt feature of the MAX14930DASE+, you need to configure the interrupt mask register to enable interrupts for specific events, such as input state changes or fault conditions. You also need to connect the INT pin to a microcontroller or other device that can handle the interrupt signal.
  • The operating temperature range of the MAX14930DASE+ is -40°C to +125°C. However, the device is only guaranteed to meet its specifications over the range of -40°C to +85°C.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX14930DASE+ Overview

Use the download button to access the MAX14930DASE+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX14, or try a keyword search, such as Other Interface ICs

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
