MAX14930EASE+ - Analog Devices

Description: Digital Isolators 4 channel (4/0 config), 25Mbps, 2.5kVrms, digital isolator, default low, NSOIC-16, -40C to +125C

Download MAX14930EASE+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

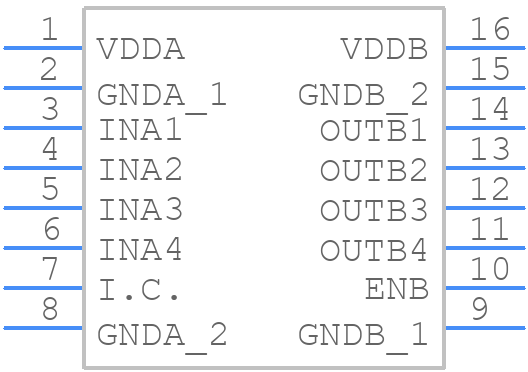

MAX14930EASE+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX14930EASE+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - S16M+11
click to zoom
3D Models
MAX14930EASE+ - Analog Devices - 3D model - Small Outline Packages - S16M+11
click to zoom

MAX14930EASE+ Details

  • Manufacturer Part Number:

    MAX14930EASE+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    16-SOIC_N-150_MIL

  • Package Description:

    SOIC-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    16-SOIC_N-150_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2014-10-24

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Interface IC Type:

    DIGITAL ISOLATOR

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    9.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    1.71 V

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

MAX14930EASE+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX14930EASE+ involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated layer for the analog signals, and to minimize the length of the traces between the device and the power supply.
  • To ensure reliable communication, make sure to use a proper SPI interface configuration, including correct clock polarity and phase, and a suitable clock frequency. Also, ensure that the microcontroller's SPI pins are 5V tolerant, and use a level translator if necessary. Additionally, implement error checking and handling mechanisms in your firmware to detect and recover from communication errors.
  • The maximum cable length supported by the MAX14930EASE+ depends on the specific application and the type of cable used. As a general guideline, the device can support cable lengths up to 10 meters at a data rate of 100 kbps. However, it's recommended to perform signal integrity analysis and testing to determine the maximum cable length for your specific application.
  • To ensure proper operation, it's recommended to power up the MAX14930EASE+ after the power supply has stabilized, and to power down the device before the power supply is turned off. Additionally, ensure that the power-up and power-down sequences are slow enough to prevent voltage spikes and glitches that could damage the device.
  • The MAX14930EASE+ has a maximum junction temperature of 150°C. To ensure reliable operation, it's recommended to keep the device temperature below 125°C. This can be achieved by using a heat sink, improving air flow, and reducing power consumption. Additionally, ensure that the device is not exposed to extreme temperatures during storage or handling.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX14930EASE+ Overview

Use the download button to access the MAX14930EASE+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX14, or try a keyword search, such as Other Interface ICs

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
