MAX14931CASE+ - Analog Devices

Description: MAXIM INTEGRATED PRODUCTS - MAX14931CASE+ - Digital Isolator, 4 Channel, 5.1 ns, 1.71 V, 5.5 V, NSOIC, 16 Pins

Download MAX14931CASE+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

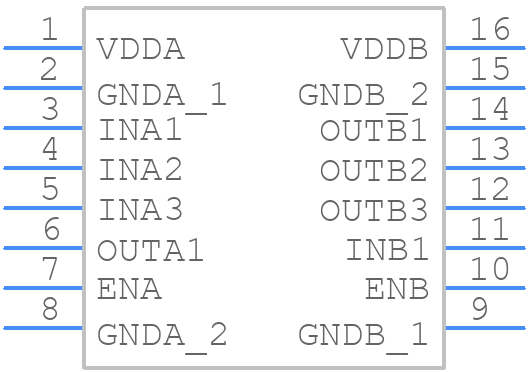

Symbol
MAX14931CASE+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX14931CASE+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - S16M+11
click to zoom
3D Models
MAX14931CASE+ - Analog Devices - 3D model - Small Outline Packages - S16M+11
click to zoom

MAX14931CASE+ Details

  • Manufacturer Part Number:

    MAX14931CASE+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    16-SOIC_N-150_MIL

  • Package Description:

    SOIC-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    16-SOIC_N-150_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2014-10-24

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Interface IC Type:

    DIGITAL ISOLATOR

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    9.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    1.71 V

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

MAX14931CASE+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX14931CASE+ involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated layer for the analog signals, and to keep the signal traces short and direct.
  • The MAX14931CASE+ requires a single 3.3V or 5V power supply. It's recommended to use a low-noise, low-dropout regulator (LDO) to power the device. The power sequencing requirement is to power up the device after the power supply has stabilized, and to ensure that the power supply can provide the required current during startup.
  • The maximum cable length supported by the MAX14931CASE+ depends on the specific application and the type of cable used. As a general rule, the cable length should be kept as short as possible to minimize signal attenuation and distortion. For longer cable lengths, it's recommended to use a cable with a higher gauge wire and to add signal conditioning circuits to compensate for signal loss.
  • To troubleshoot common issues with the MAX14931CASE+, start by checking the power supply and ensuring that it's stable and within the recommended range. Next, verify that the device is properly configured and that the communication protocol is correct. Use a logic analyzer or oscilloscope to capture and analyze the signal waveforms, and check for any signs of signal distortion or noise. Finally, consult the datasheet and application notes for troubleshooting guides and FAQs.
  • The MAX14931CASE+ has a maximum junction temperature of 150°C. To prevent overheating, ensure good airflow around the device, and use a heat sink or thermal pad if necessary. Avoid blocking the airflow around the device, and keep the ambient temperature within the recommended range. Monitor the device temperature using a thermal sensor or thermal imaging camera, and take corrective action if the temperature exceeds the recommended limit.
