MAX14932AASE+ - Analog Devices

Description: MAXIM INTEGRATED PRODUCTS - MAX14932AASE+ - DIGI ISOLATOR, 1MBPS, 2.75KV, NSOIC-16

Download MAX14932AASE+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

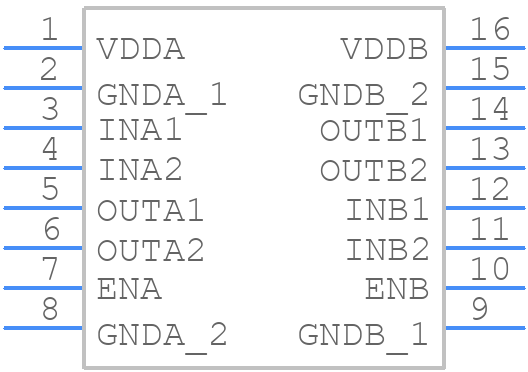

MAX14932AASE+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX14932AASE+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 21-0041
click to zoom
3D Models
MAX14932AASE+ - Analog Devices - 3D model - Small Outline Packages - 21-0041
click to zoom

MAX14932AASE+ Details

  • Manufacturer Part Number:

    MAX14932AASE+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    16-SOIC_N-150_MIL

  • Package Description:

    SOIC-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    16-SOIC_N-150_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2014-10-24

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Interface IC Type:

    DIGITAL ISOLATOR

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    9.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    1.71 V

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

MAX14932AASE+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX14932AASE+ involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power supply. Additionally, ensure that the input and output traces are short and well-shielded to minimize noise and electromagnetic interference (EMI).
  • The MAX14932AASE+ is a highly configurable device. To configure it for a specific application, refer to the device's evaluation kit documentation and software tools, such as the MAX14932AASE+ Evaluation Kit User Manual and the MAX14932AASE+ Configuration Software. These resources provide detailed guidance on configuring the device for various applications.
  • The MAX14932AASE+ has a maximum junction temperature of 150°C. To ensure reliable operation in high-temperature environments, use a heat sink or thermal pad to dissipate heat, and ensure good airflow around the device. Additionally, consider using a thermally conductive PCB material and optimizing the PCB layout to minimize thermal resistance.
  • To troubleshoot common issues with the MAX14932AASE+, start by verifying the power supply and input voltage levels. Check the device's configuration and programming to ensure that it is set up correctly. Use a logic analyzer or oscilloscope to debug communication issues, and consult the device's datasheet and application notes for troubleshooting guidance.
  • To ensure EMI and EMC compliance, follow proper PCB layout and design practices, such as using a solid ground plane, shielding sensitive signals, and minimizing loop areas. Additionally, use EMI filters and shielding on the device's inputs and outputs, and consult the device's datasheet and application notes for specific guidance on EMI and EMC considerations.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX14932AASE+ Overview

Use the download button to access the MAX14932AASE+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX14, or try a keyword search, such as Other Interface ICs

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
