MAX14936FAWE+ - Analog Devices

Description: Digital Isolators 5kVrms 150Mbps 2/2 Channel Digital Isola

Download MAX14936FAWE+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

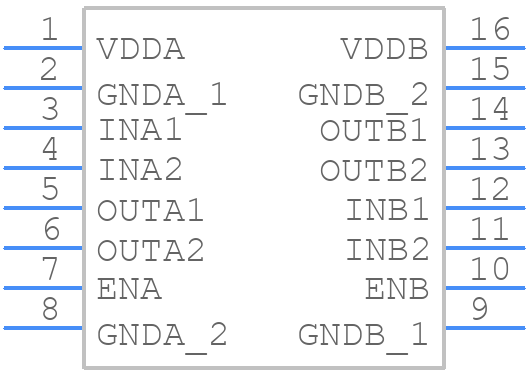

Symbol
MAX14936FAWE+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX14936FAWE+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MAX14936FAWE+
click to zoom
3D Models
MAX14936FAWE+ - Analog Devices - 3D model - Small Outline Packages - MAX14936FAWE+
click to zoom

MAX14936FAWE+ Details

  • Manufacturer Part Number:

    MAX14936FAWE+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    16-SOIC_W-300_MIL

  • Package Description:

    SOIC-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    16-SOIC_W-300_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2014-09-28

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Interface IC Type:

    DIGITAL ISOLATOR

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    10.3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    2.65 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    1.71 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

MAX14936FAWE+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX14936FAWE+ involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the traces between the device and the power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure reliable communication between the MAX14936FAWE+ and the microcontroller, make sure to use a proper SPI interface configuration, including correct clock polarity and phase, and ensure that the microcontroller's SPI clock frequency is within the recommended range of 1MHz to 10MHz. Also, use a pull-up resistor on the CS pin to prevent unwanted chip selects.
  • The maximum cable length supported by the MAX14936FAWE+ depends on the specific application and the type of cable used. However, as a general guideline, the device can support cable lengths up to 100 meters at a data rate of 100kbps. For longer cable lengths, it's recommended to use repeaters or amplifiers to ensure signal integrity.
  • The MAX14936FAWE+ has built-in error detection and fault handling mechanisms, including parity checking and error flags. To handle errors and faults, implement a robust error handling routine in the microcontroller's firmware that can detect and respond to errors, such as retrying failed transmissions or resetting the device.
  • The recommended power-up sequence for the MAX14936FAWE+ is to first power up the device's VCC supply, followed by the VDD supply. This ensures that the device's internal regulators are properly initialized and that the device is in a stable state before the microcontroller starts communicating with it.
