MAX14937AWE+ - Analog Devices

Description: Digital Isolators 2 channel, each bidirectional, 2Mbps, 5kVrms digital isolator, WSOIC-16, -40C to +125C

Download MAX14937AWE+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

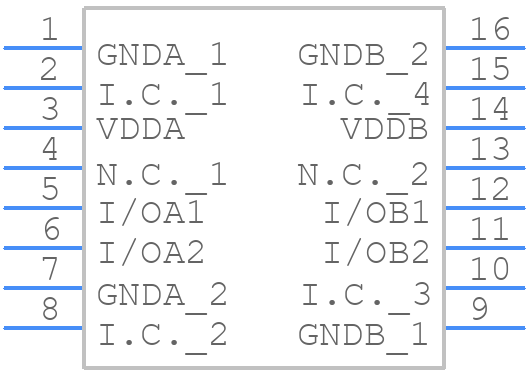

MAX14937AWE+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX14937AWE+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - Max 21-0042_A (16 Pin wide)
click to zoom
3D Models
MAX14937AWE+ - Analog Devices - 3D model - Small Outline Packages - Max 21-0042_A (16 Pin wide)
click to zoom

MAX14937AWE+ Details

  • Manufacturer Part Number:

    MAX14937AWE+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    16-SOIC_W-300_MIL

  • Package Description:

    SOIC-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    16-SOIC_W-300_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2016-05-10

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Interface IC Type:

    DIGITAL ISOLATOR

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    10.3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    2.65 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.25 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

MAX14937AWE+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX14937AWE+ involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated layer for the analog signals, and to minimize the length of the traces between the device and the power supply.
  • To ensure the MAX14937AWE+ is properly powered, make sure to provide a clean and stable power supply voltage within the recommended range of 2.7V to 5.5V. Also, decouple the power supply lines with 0.1uF and 10uF capacitors to reduce noise and ripple.
  • The MAX14937AWE+ can sink or source up to 25mA of current per channel, but it's recommended to limit the current to 10mA per channel to ensure reliable operation and to prevent overheating.
  • To configure the MAX14937AWE+ for I2C communication, connect the SCL pin to the I2C clock line, and the SDA pin to the I2C data line. Make sure to pull up the SCL and SDA lines with 1kΩ to 10kΩ resistors, and set the I2C address by connecting the A0 and A1 pins to VCC or GND according to the desired address.
  • The MAX14937AWE+ can handle I2C clock frequencies up to 400kHz, but it's recommended to limit the clock frequency to 100kHz to ensure reliable operation and to prevent errors.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX14937AWE+ Overview

Use the download button to access the MAX14937AWE+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX14, or try a keyword search, such as Other Interface ICs

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
