MAX14937AWE+T - Analog Devices

Description: Digital Isolators 2 channel, each bidirectional, 2Mbps, 5kVrms digital isolator, WSOIC-16, -40C to +125C

Download MAX14937AWE+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

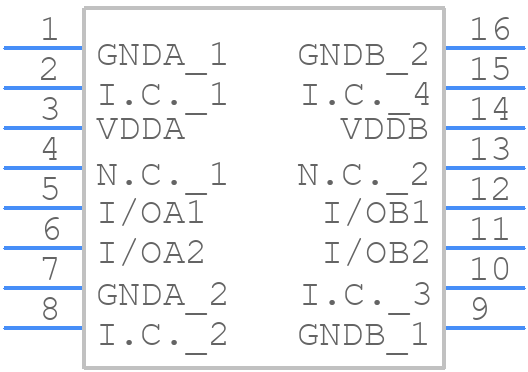

MAX14937AWE+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX14937AWE+T - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MAX14937AWE+T
click to zoom
3D Models
MAX14937AWE+T - Analog Devices - 3D model - Small Outline Packages - MAX14937AWE+T
click to zoom

MAX14937AWE+T Details

  • Manufacturer Part Number:

    MAX14937AWE+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    16-SOIC_W-300_MIL

  • Package Description:

    SOIC-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    16-SOIC_W-300_MIL

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2016-05-10

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Interface IC Type:

    DIGITAL ISOLATOR

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    10.3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    2.65 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.25 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

MAX14937AWE+T Frequently Asked Questions (FAQs)

  • A good PCB layout should consider the following: keep the analog and digital grounds separate, use a solid ground plane, keep the input and output traces short and away from each other, and use a 4-layer PCB with a dedicated power plane.
  • The choice of external components depends on the specific application and requirements. Refer to the datasheet's application circuits and notes, and consider factors such as noise tolerance, signal frequency, and component tolerances.
  • The MAX14937AWE+T has an operating temperature range of -40°C to +125°C, but the device's performance may degrade at extreme temperatures. Ensure proper thermal management and consider derating the device's performance at high temperatures.
  • To troubleshoot issues, check the PCB layout, ensure proper power supply decoupling, verify the input and output voltage levels, and check for noise or interference on the input signals. Consult the datasheet and application notes for specific troubleshooting guidelines.
  • The recommended power-up sequence is to apply the input voltage (VIN) followed by the enable signal (EN). For power-down, remove the enable signal (EN) followed by the input voltage VIN). This sequence helps prevent unwanted output voltage transients.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX14937AWE+T Overview

Use the download button to access the MAX14937AWE+T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX14, or try a keyword search, such as Other Interface ICs
