MAX14998ETO+ footprint, schematic symbol and 3D model by Analog Devices

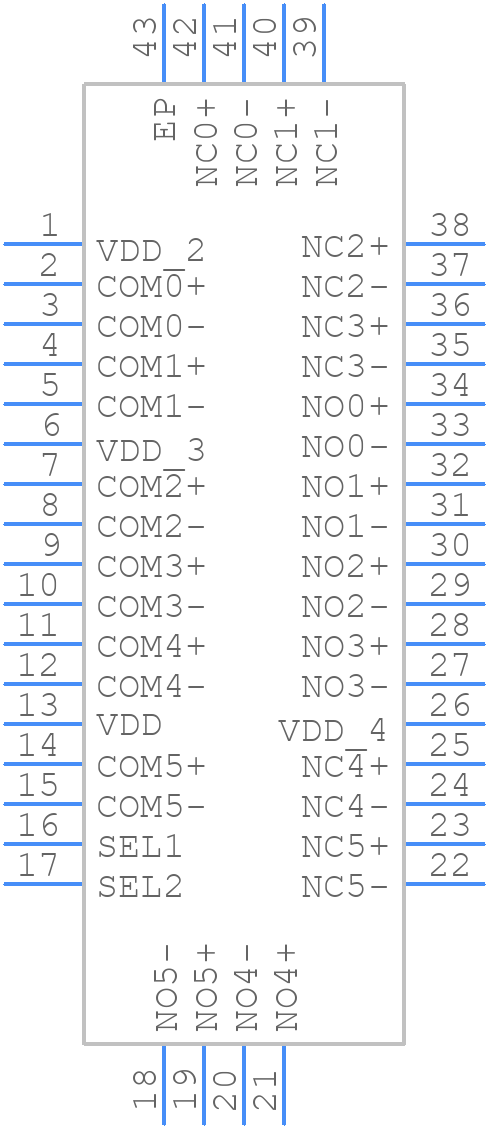

Symbol

click to zoom

PCB Footprints

MAX14998ETO+ - Analog Devices PCB footprint - Other - Other - QFN50P350X900X80-43N

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for MAX14998ETO+
Part Number MAX14998ETO+
Manufacturer Analog Devices
Pin Count 43
Part Category Integrated Circuit
Package Category Other
Footprint Name Other - QFN50P350X900X80-43N
Released Date Jan 11, 2017
Last Modified Date Nov 15, 2024 1:35 PM UTC
Pinout / Pin List Click Here (Member Only)

MAX14998ETO+ Details

Manufacturer Part Number:
MAX14998ETO+
Brand Name:
Analog Devices Inc
Rohs Code:
Yes
Part Life Cycle Code:
Active
Part Package Code:
42-LFCSP-3.5X9X0.75
Package Description:
TQFN-42
Pin Count:
42
Manufacturer Package Code:
42-LFCSP-3.5X9X0.75
Country Of Origin:
Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA
HTS Code:
8542.39.00.60
Date Of Intro:
2009-11-11
Manufacturer:
Analog Devices Inc
YTEOL:
8.5
Analog IC - Other Type:
DPDT
JESD-30 Code:
R-XQCC-N42
Length:
9 mm
Moisture Sensitivity Level:
1
Number of Functions:
6
Number of Terminals:
42
Off-state Isolation-Nom:
28 dB
On-state Resistance Match-Nom:
1 Ω
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Output:
SEPARATE OUTPUT
Package Body Material:
UNSPECIFIED
Package Code:
HVQCCN
Package Equivalence Code:
LCC42,.14X.35,20
Package Shape:
RECTANGULAR
Package Style:
CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE
Peak Reflow Temperature (Cel):
260
Seated Height-Max:
0.8 mm
Signal Current-Max:
0.07 A
Supply Current-Max (Isup):
0.85 mA
Supply Voltage-Max (Vsup):
3.6 V
Supply Voltage-Min (Vsup):
3 V
Supply Voltage-Nom (Vsup):
3.3 V
Surface Mount:
YES
Switch-off Time-Max:
50 ns
Switch-on Time-Max:
120 ns
Switching:
BREAK-BEFORE-MAKE
Technology:
CMOS
Terminal Finish:
Matte Tin (Sn) - annealed
Terminal Form:
NO LEAD
Terminal Pitch:
0.5 mm
Terminal Position:
QUAD
Time@Peak Reflow Temperature-Max (s):
30
Width:
3.5 mm

MAX14998ETO+ Frequently Asked Questions (FAQs)

The recommended PCB layout for the MAX14998ETO+ is to use a 4-layer board with a solid ground plane, and to keep the analog and digital signals separate. Additionally, it's recommended to use a low-ESR capacitor for the VCC bypass and to place it as close as possible to the VCC pin.
To ensure reliable communication between the MAX14998ETO+ and the microcontroller, make sure to use a proper SPI interface, with correct clock polarity and phase, and to use a pull-up resistor on the CS pin. Also, ensure that the microcontroller's SPI clock frequency is within the recommended range of 1MHz to 10MHz.
The maximum cable length supported by the MAX14998ETO+ depends on the specific application and the type of cable used. However, as a general guideline, the maximum cable length should not exceed 10 meters for a reliable operation. It's recommended to use a shielded twisted-pair cable and to follow proper cable termination techniques.
The MAX14998ETO+ has built-in error detection and fault handling mechanisms. The device provides error flags and fault indicators that can be monitored by the microcontroller. In case of an error or fault, the microcontroller can take corrective action, such as resetting the device or re-initializing the communication.
Yes, the MAX14998ETO+ is specified to operate over an industrial temperature range of -40°C to +85°C. However, it's recommended to check the specific operating conditions and temperature ranges for the specific application and to ensure that the device is properly derated for operation at high temperatures.
