MAX15006BASA/V+ - Analog Devices

Description: MAXIM INTEGRATED PRODUCTS - MAX15006BASA/V+ - Fixed LDO Voltage Regulator, 4 V to 40 V, 300 mV Dropout, 5 V/50 mA out, HSOIC-8

Download MAX15006BASA/V+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

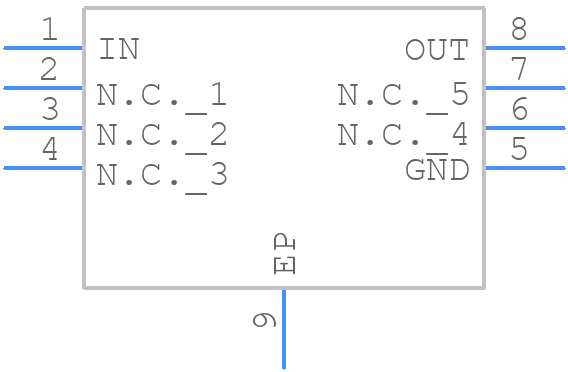

Symbol
MAX15006BASA/V+ - Analog Devices - PCB symbol
click to zoom

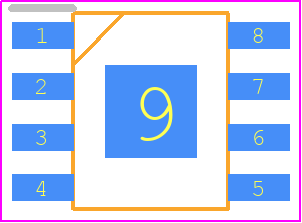

PCB Footprints
MAX15006BASA/V+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - S8E+12-2020
click to zoom
3D Models
MAX15006BASA/V+ - Analog Devices - 3D model - Small Outline Packages - S8E+12-2020
click to zoom

MAX15006BASA/V+ Details

  • Manufacturer Part Number:

    MAX15006BASA/V+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    8-SOIC_N-150_MIL

  • Package Description:

    ROHS COMPLIANT, SOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-SOIC_N-150_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2006-11-08

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    3

  • Adjustability:

    FIXED

  • Dropout Voltage1-Max:

    0.053 V

  • Dropout Voltage1-Nom:

    0.3 V

  • Input Voltage Absolute-Max:

    45 V

  • Input Voltage-Max:

    40 V

  • Input Voltage-Min:

    4 V

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.89 mm

  • Line Regulation-Max:

    0.0125%

  • Load Regulation-Max(%):

    0.075%

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature TJ-Max:

    125 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current1-Max:

    0.005 A

  • Output Voltage1-Max:

    5.075 V

  • Output Voltage1-Min:

    4.925 V

  • Output Voltage1-Nom:

    5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HLSOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, LOW PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Regulator Type:

    FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.68 mm

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Voltage Tolerance-Max:

    1.5%

  • Width:

    3.9 mm

MAX15006BASA/V+ Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the MAX15006BASA/V+ involves keeping the input and output traces as short as possible, using a solid ground plane, and placing the device close to the power source. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to minimize noise and EMI.
  • To ensure the MAX15006BASA/V+ is stable and doesn't oscillate, it's essential to follow the recommended layout and placement guidelines, use a sufficient output capacitor, and ensure the input voltage is within the recommended range. Additionally, it's recommended to add a small capacitor (e.g., 10nF) between the VIN pin and the GND pin to improve stability.
  • The maximum input voltage that can be applied to the MAX15006BASA/V+ is 5.5V. Exceeding this voltage can cause damage to the device. It's recommended to use a voltage regulator or a voltage limiter to ensure the input voltage remains within the recommended range.
  • The MAX15006BASA/V+ is rated for operation up to 125°C. However, it's essential to ensure the device is properly derated for high-temperature operation, and the PCB is designed to handle the increased thermal stress. Additionally, it's recommended to use a heat sink or a thermal pad to improve heat dissipation.
  • To troubleshoot issues with the MAX15006BASA/V+, start by verifying the input voltage and current, and ensuring the device is properly connected and configured. Use an oscilloscope to check for oscillations or noise on the output, and verify the output voltage and current are within the expected range. If issues persist, consult the datasheet and application notes for guidance, or contact Analog Devices Inc. support for further assistance.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX15006BASA/V+ Overview

Use the download button to access the MAX15006BASA/V+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX15, or try a keyword search, such as Linear Regulator ICs

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
