MAX15059BATE+T - Analog Devices

Description: Switching Voltage Regulators 76V, 200mW Boost Converter and Current Monitor for APD Bias Applications

Download MAX15059BATE+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

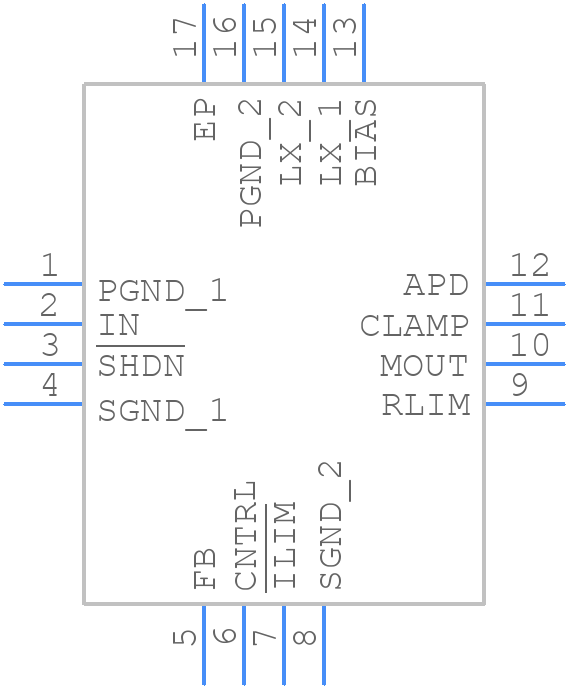

MAX15059BATE+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX15059BATE+T - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - T1633+4
click to zoom
3D Models
MAX15059BATE+T - Analog Devices - 3D model - Quad Flat No-Lead - T1633+4
click to zoom

MAX15059BATE+T Details

  • Manufacturer Part Number:

    MAX15059BATE+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    16-LFCSP-3X3X0.75

  • Package Description:

    TQFN-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    16-LFCSP-3X3X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2010-06-03

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    ALSO OPERATES IN ADJUSTABLE MODE FROM 7.8V TO 76V

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    2.8 V

  • Input Voltage-Nom:

    3.3 V

  • JESD-30 Code:

    S-XQCC-N16

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.975 A

  • Output Voltage-Max:

    76 V

  • Output Voltage-Min:

    7.8 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max (Isup):

    1.35 mA

  • Surface Mount:

    YES

  • Switcher Configuration:

    BOOST

  • Switching Frequency-Max:

    420 kHz

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

MAX15059BATE+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX15059BATE+T involves keeping the input and output traces short and separate, using a solid ground plane, and placing the input and output capacitors close to the device. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to minimize noise and EMI.
  • The choice of input and output capacitors for the MAX15059BATE+T depends on the specific application requirements. In general, X5R or X7R ceramic capacitors with a voltage rating of 10V or higher are recommended. The capacitance value should be chosen based on the desired ripple voltage and output voltage regulation. A good starting point is to use 10uF capacitors for both input and output.
  • The MAX15059BATE+T has an operating temperature range of -40°C to +125°C. However, the maximum ambient temperature range depends on the specific application and the thermal design of the system. In general, it's recommended to keep the ambient temperature below 85°C to ensure reliable operation.
  • To ensure stability and prevent oscillation, it's essential to follow the recommended PCB layout and component selection guidelines. Additionally, make sure to decouple the input and output pins with suitable capacitors, and use a stable input voltage source. It's also recommended to add a small resistor (e.g., 10Ω) in series with the output capacitor to dampen any potential oscillations.
  • Yes, the MAX15059BATE+T is suitable for high-reliability and automotive applications. It's AEC-Q100 qualified and meets the requirements for automotive systems. However, it's essential to follow the recommended design and layout guidelines, and to perform thorough testing and validation to ensure the device meets the specific application requirements.
