MAX15062AATA+T - Analog Devices

Description: 60V, 300mA, Ultra-Small, High-Efficiency, Synchronous Step-Down DC-DC Converters

Download MAX15062AATA+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

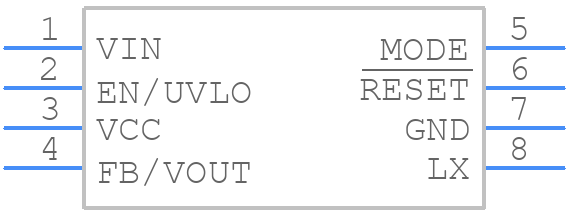

Symbol
MAX15062AATA+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX15062AATA+T - Analog Devices PCB footprint - Other - Other - T822C+6C
click to zoom
3D Models
MAX15062AATA+T - Analog Devices - 3D model - Other - T822C+6C
click to zoom

MAX15062AATA+T Details

  • Manufacturer Part Number:

    MAX15062AATA+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-LFCSP-2X2X0.75

  • Package Description:

    2 X 2 MM, ROHS COMPLIANT, TDFN-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-LFCSP-2X2X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2013-06-28

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    ALSO OPERATES IN PFM CONTROL TECHNIQUE

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    60 V

  • Input Voltage-Min:

    4.5 V

  • Input Voltage-Nom:

    24 V

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    2 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.62 A

  • Output Voltage-Max:

    5.07 V

  • Output Voltage-Min:

    4.93 V

  • Output Voltage-Nom:

    5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VSON

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    535 kHz

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2 mm

MAX15062AATA+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX15062AATA+T involves keeping the input and output traces separate, using a solid ground plane, and placing the device close to the power source. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to minimize noise and ensure optimal performance.
  • The MAX15062AATA+T requires a single 3.3V or 5V power supply. It's recommended to power the device with a clean, low-noise power source. The power sequencing requirements involve powering the device after the input voltage has stabilized, and ensuring that the input voltage is within the recommended operating range.
  • The MAX15062AATA+T has a maximum junction temperature of 150°C. To prevent overheating, ensure good airflow around the device, use a heat sink if necessary, and avoid blocking the airflow around the device. Additionally, ensure that the device is operated within the recommended operating temperature range.
  • To troubleshoot issues with the MAX15062AATA+T, start by checking the power supply and input voltage, then verify the output voltage and current. Common pitfalls to avoid include incorrect power sequencing, inadequate decoupling, and poor PCB layout. Additionally, ensure that the device is operated within the recommended operating conditions.
  • The MAX15062AATA+T has built-in ESD protection, but it's still recommended to take precautions to prevent electrostatic discharge. Use an anti-static wrist strap or mat when handling the device, and ensure that the device is stored in an anti-static bag or container.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX15062AATA+T Overview

Use the download button to access the MAX15062AATA+T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX15, or try a keyword search, such as Switching Regulator or Controllers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
