MAX15062CATA+T - Analog Devices

Description: 60V, 300mA, Ultra-Small, High-Efficiency, Synchronous Step-Down DC-DC Converters

Download MAX15062CATA+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

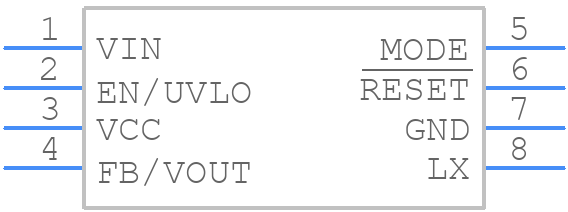

Symbol
MAX15062CATA+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX15062CATA+T - Analog Devices PCB footprint - Other - Other - 8-LFCSP-2X2X0.75_2023
click to zoom
3D Models
MAX15062CATA+T - Analog Devices - 3D model - Other - 8-LFCSP-2X2X0.75_2023
click to zoom

MAX15062CATA+T Details

  • Manufacturer Part Number:

    MAX15062CATA+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-LFCSP-2X2X0.75

  • Package Description:

    2 X 2 MM, ROHS COMPLIANT, TDFN-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-LFCSP-2X2X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2013-06-28

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    OPERATES IN ADJUSTABLE MODE FROM 0.9V TO 53.4V; ALSO OPERATES IN PFM MODE AT LIGHT LOADS

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    60 V

  • Input Voltage-Min:

    4.5 V

  • Input Voltage-Nom:

    24 V

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    2 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.62 A

  • Output Voltage-Max:

    5.07 V

  • Output Voltage-Min:

    4.93 V

  • Output Voltage-Nom:

    5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VSON

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    535 kHz

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2 mm

MAX15062CATA+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX15062CATA+T involves keeping the input and output traces short and away from noise sources, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended.
  • The input and output capacitors should be selected based on the specific application requirements. A general guideline is to use X5R or X7R ceramic capacitors with a voltage rating of at least 2x the input voltage. The capacitance value should be chosen to ensure that the impedance of the capacitor is less than the output impedance of the device at the switching frequency.
  • The MAX15062CATA+T has an operating ambient temperature range of -40°C to +125°C. However, the device's performance and reliability may be affected at extreme temperatures, and the user should consult the datasheet and application notes for specific guidance.
  • Yes, the MAX15062CATA+T is qualified for automotive and high-reliability applications. It meets the requirements of AEC-Q100 and is manufactured using a robust process that ensures high reliability and low defect rates.
  • To troubleshoot issues with the MAX15062CATA+T, start by checking the input voltage, output voltage, and current. Verify that the device is properly soldered and that the PCB layout is correct. Check for signs of overheating, such as excessive temperature rise or thermal shutdown. Consult the datasheet and application notes for specific guidance on troubleshooting and fault detection.
