Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA
ECCN Code:
EAR99
HTS Code:
8542.39.00.60
Date Of Intro:
2010-09-21
Manufacturer:
Analog Devices Inc
YTEOL:
0
Analog IC - Other Type:
BATTERY CHARGE CONTROLLER
Control Mode:
CURRENT-MODE
Control Technique:
PULSE WIDTH MODULATION
Input Voltage-Max:
16 V
Input Voltage-Min:
4.5 V
Input Voltage-Nom:
12 V
JESD-30 Code:
S-PBGA-B16
Length:
2.045 mm
Moisture Sensitivity Level:
1
Number of Functions:
1
Number of Terminals:
16
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Output Current-Max:
4 A
Output Voltage-Max:
14.4 V
Output Voltage-Min:
0.606 V
Output Voltage-Nom:
5.1 V
Package Body Material:
PLASTIC/EPOXY
Package Code:
FBGA
Package Equivalence Code:
BGA16,4X4,20
Package Shape:
SQUARE
Package Style:
GRID ARRAY, FINE PITCH
Packing Method:
TR
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
0.69 mm
Surface Mount:
YES
Switcher Configuration:
BUCK
Switching Frequency-Max:
550 kHz
Technology:
BICMOS
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Tin/Silver/Copper/Nickel (Sn/Ag/Cu/Ni)
Terminal Form:
BALL
Terminal Pitch:
0.5 mm
Terminal Position:
BOTTOM
Time@Peak Reflow Temperature-Max (s):
30
Width:
2.045 mm
MAX15066EWE+T Frequently Asked Questions (FAQs)
A good PCB layout for the MAX15066EWE+T involves keeping the input and output traces short and separate, using a solid ground plane, and placing the device close to the power source. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to minimize noise and EMI.
To ensure proper power-up and configuration, it's recommended to follow a specific power-up sequence, which involves applying the input voltage, then the enable signal, and finally the clock signal. Additionally, the device should be configured in a specific order, such as setting the output voltage, then the output current limit, and finally the fault detection thresholds.
The MAX15066EWE+T has a maximum junction temperature of 150°C. To ensure it doesn't overheat, it's recommended to provide adequate heat sinking, such as using a thermal pad or a heat sink, and to keep the device away from other heat sources. Additionally, the device should be operated within its recommended operating conditions, and the output current should be limited to prevent excessive power dissipation.
To troubleshoot issues with the MAX15066EWE+T, it's recommended to use a systematic approach, starting with checking the input voltage, output voltage, and output current. Then, check the device's configuration and fault detection settings. Use an oscilloscope to monitor the device's signals and identify any anomalies. Finally, consult the datasheet and application notes for specific troubleshooting guidelines.
Yes, the MAX15066EWE+T can be used in high-reliability or safety-critical applications, but it's essential to follow specific guidelines and considerations. These include using redundant systems, implementing fault detection and correction mechanisms, and ensuring the device is operated within its recommended operating conditions. Additionally, it's recommended to consult with Analog Devices' application engineers and to follow relevant industry standards and regulations.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MAX15066EWE+T Overview

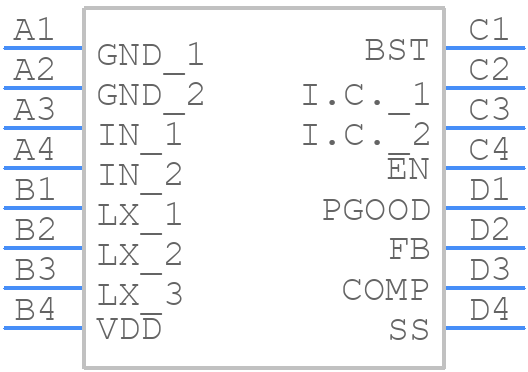

Use the download button to access the MAX15066EWE+T schematic symbol, PCB footprint, and 3D model.
