MAX15090BEWI+T - Analog Devices

Description: Hot Swap Voltage Controllers 2.7V to 18V, 12A, Hot-Swap Solution with Current Report Output

Download MAX15090BEWI+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

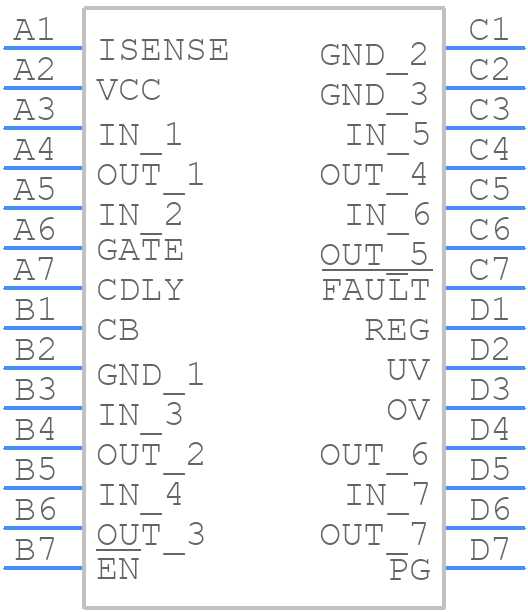

MAX15090BEWI+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX15090BEWI+T - Analog Devices PCB footprint - BGA - BGA - W282B3Z+1
click to zoom
3D Models
MAX15090BEWI+T - Analog Devices - 3D model - BGA - W282B3Z+1
click to zoom

MAX15090BEWI+T Details

  • Manufacturer Part Number:

    MAX15090BEWI+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    28-WLCSP-N/A

  • Package Description:

    WLP-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    28-WLCSP-N/A

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2016-04-25

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    HOT SWAP CONTROLLER

  • JESD-30 Code:

    R-XBGA-B28

  • Length:

    3.525 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA28,4X7,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.69 mm

  • Supply Current-Max (Isup):

    6.2 mA

  • Supply Voltage-Max (Vsup):

    18 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    12 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin/Silver/Copper/Nickel (Sn/Ag/Cu/Ni)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    BOTTOM

  • Threshold Voltage-Nom:

    1.23

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2.065 mm

MAX15090BEWI+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX15090BEWI+T involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended. Additionally, it's essential to follow the layout guidelines provided in the datasheet and application notes.
  • The selection of input and output capacitors for the MAX15090BEWI+T depends on the specific application requirements. In general, X5R or X7R ceramic capacitors with a voltage rating of 10V or higher are recommended. The capacitance value should be chosen based on the desired output voltage ripple and the input voltage range. A minimum capacitance of 10uF is recommended for the input capacitor, and a minimum capacitance of 22uF is recommended for the output capacitor.
  • The MAX15090BEWI+T has an operating ambient temperature range of -40°C to +125°C. However, the device's performance and reliability may be affected at extreme temperatures. It's essential to ensure that the device is operated within the recommended temperature range to ensure optimal performance and reliability.
  • To troubleshoot issues with the MAX15090BEWI+T, start by checking the input voltage and current, output voltage and current, and the device's temperature. Verify that the input and output capacitors are properly selected and placed. Check for any signs of overheating, such as excessive temperature rise or thermal shutdown. Use an oscilloscope to check for any voltage or current oscillations. Consult the datasheet and application notes for troubleshooting guidelines and refer to the device's fault detection and protection features.
  • The MAX15090BEWI+T is a high-reliability device that meets the requirements of various safety standards, including AEC-Q100 and IEC 61508. However, it's essential to ensure that the device is used within its specified operating conditions and that the system design meets the required safety and reliability standards. Consult the datasheet and application notes for more information on using the MAX15090BEWI+T in high-reliability or safety-critical applications.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX15090BEWI+T Overview

Use the download button to access the MAX15090BEWI+T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX15, or try a keyword search, such as Power Management Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
