- Part Number MAX15091ETI+
- Manufacturer Analog Devices
- Pin Count 29
- Part Category Integrated Circuit
- Package Category Quad Flat No-Lead
- Footprint Name Quad Flat No-Lead - T2855+8
- Released Date Oct 11, 2022
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
MAX15091ETI+ Details
-
Manufacturer Part Number:
MAX15091ETI+
-
Brand Name:
Analog Devices Inc
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Not Recommended
-
Part Package Code:
28-LFCSP-5X5X0.75
-
Package Description:
TQFN-28
-
Pin Count:
28
-
Manufacturer Package Code:
28-LFCSP-5X5X0.75
-
Country Of Origin:
Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.60
-
Date Of Intro:
2013-03-25
MAX15091ETI+ Frequently Asked Questions (FAQs)
-
A good PCB layout is crucial for the MAX15091ETI+. Ensure a solid ground plane, keep the input and output traces short and separate, and use a common-mode choke to reduce EMI. Refer to the application note AN-1077 for more detailed guidelines.
-
Choose input capacitors with low ESR and high ripple current ratings. For output capacitors, select ones with low ESR and high capacitance. The datasheet recommends 10uF to 22uF capacitors for both input and output. However, the optimal value depends on the specific application and output current requirements.
-
The MAX15091ETI+ can deliver up to 1.5A of output current. However, the maximum output current is dependent on the input voltage, output voltage, and ambient temperature. Refer to the datasheet's thermal derating curves to determine the maximum output current for your specific application.
-
The MAX15091ETI+ has a built-in overcurrent protection feature. You can set the overcurrent threshold using the OCSET pin. Connect a resistor from OCSET to GND to set the threshold. The datasheet provides a formula to calculate the required resistor value based on the desired overcurrent threshold.
-
The EN (enable) pin is used to turn the device on or off. When EN is high, the device is enabled, and when EN is low, the device is disabled. You can use the EN pin to implement power sequencing or to turn off the device when not in use to reduce power consumption.
Trust Checks
Community Provided
System Verified
Community Approved
MAX15091ETI+ Overview

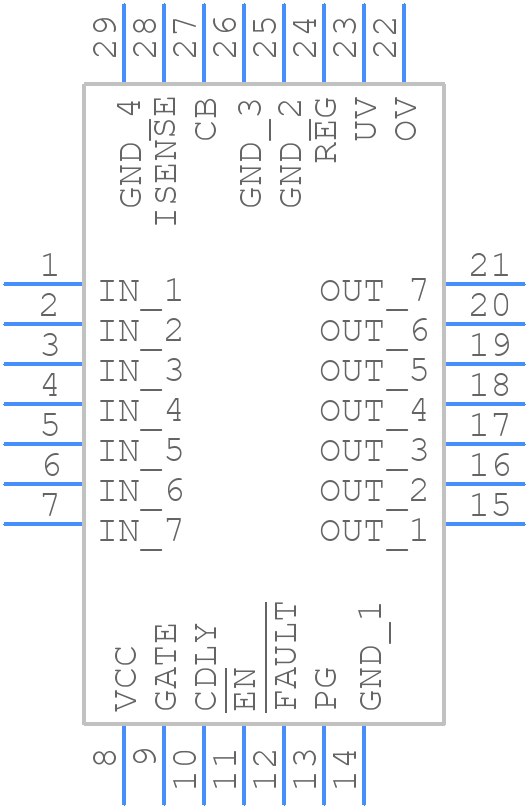

Use the download button to access the MAX15091ETI+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX15,
or try a keyword search, such as Power Management Circuits
