MAX15101EWL+T - Analog Devices

Description: LDO Voltage Regulators Small 1A, Low-Dropout Linear Regulator in a 2.7mm 1.6mm Package

Download MAX15101EWL+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

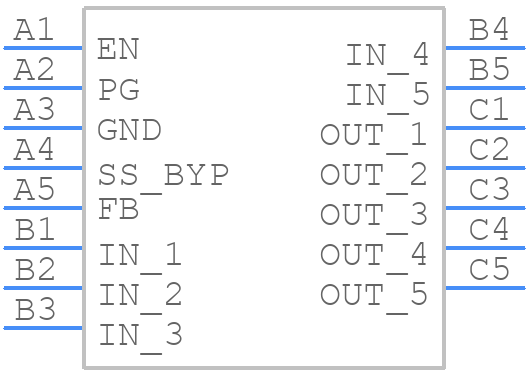

MAX15101EWL+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX15101EWL+T - Analog Devices PCB footprint - BGA - BGA - W151B2+1
click to zoom
3D Models
MAX15101EWL+T - Analog Devices - 3D model - BGA - W151B2+1
click to zoom

MAX15101EWL+T Details

  • Manufacturer Part Number:

    MAX15101EWL+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    15-WLCSP-N/A

  • Package Description:

    2.70 X 1.60 MM, ROHS COMPLIANT, WLP-15

  • Pin Count:

    15

  • Manufacturer Package Code:

    15-WLCSP-N/A

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2012-01-16

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Adjustability:

    ADJUSTABLE

  • Dropout Voltage1-Max:

    0.1 V

  • Dropout Voltage1-Nom:

    0.025 V

  • JESD-30 Code:

    R-PBGA-B15

  • Length:

    2.655 mm

  • Line Regulation-Max (%/V):

    0.15

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    15

  • Operating Temperature TJ-Max:

    85 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    1 A

  • Output Voltage1-Max:

    5.2 V

  • Output Voltage1-Min:

    0.6 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VFBGA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Regulator Type:

    ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    0.69 mm

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Terminal Finish:

    Tin/Silver/Copper/Nickel (Sn/Ag/Cu/Ni)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.575 mm

MAX15101EWL+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX15101EWL+T involves keeping the input and output traces short and wide, using a solid ground plane, and placing the input and output capacitors close to the device. Additionally, it's recommended to use a separate analog and digital ground plane to minimize noise coupling.
  • The input and output capacitors should be selected based on the specific application requirements. A general rule of thumb is to use low-ESR capacitors with a value of 10uF to 22uF for the input and output. The capacitor selection should also consider the voltage rating, ripple current, and temperature range.
  • The MAX15101EWL+T has an operating temperature range of -40°C to +125°C, but the maximum ambient temperature range depends on the specific application and the thermal design of the system. It's recommended to follow the thermal design guidelines provided in the datasheet to ensure reliable operation.
  • To troubleshoot issues with the MAX15101EWL+T, start by checking the input voltage, output voltage, and current. Verify that the input and output capacitors are properly selected and placed. Check for any signs of overheating, such as excessive temperature rise or thermal shutdown. Use an oscilloscope to check for any noise or oscillations on the output. Consult the datasheet and application notes for troubleshooting guidelines and tips.
  • The MAX15101EWL+T is a high-reliability device, but it's essential to follow the recommended design and layout guidelines to ensure reliable operation. Additionally, it's recommended to follow the safety guidelines and regulations specific to the application, such as IEC 61508 or ISO 26262. Consult with Analog Devices Inc. or a qualified reliability engineer for guidance on using the MAX15101EWL+T in a high-reliability or safety-critical application.
