MAX15162AATG+ - Analog Devices

Description: Power Management Specialised - PMIC 60V Dual Efuse for PA

Download MAX15162AATG+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

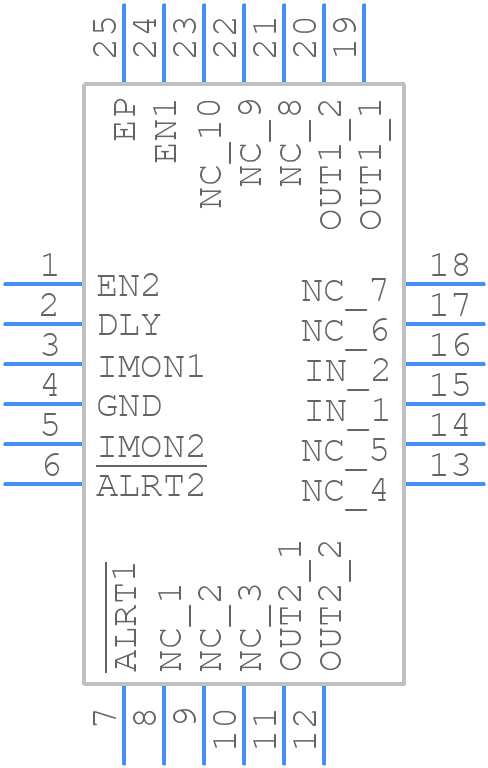

MAX15162AATG+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX15162AATG+ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - T2444+2C-1
click to zoom
3D Models
MAX15162AATG+ - Analog Devices - 3D model - Quad Flat No-Lead - T2444+2C-1
click to zoom

MAX15162AATG+ Details

  • Manufacturer Part Number:

    MAX15162AATG+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    24-LFCSP-4X4X0.75

  • Package Description:

    TQFN-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    24-LFCSP-4X4X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2020-04-17

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Additional Feature:

    CURRENT LIMIT:1.5A; THERMAL SHUTDOWN:156C

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    LOAD SWITCH

  • JESD-30 Code:

    S-XQCC-N24

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max (Isup):

    1.5 mA

  • Supply Voltage-Max (Vsup):

    60 V

  • Supply Voltage-Min (Vsup):

    8 V

  • Supply Voltage-Nom (Vsup):

    48 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

MAX15162AATG+ Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the MAX15162AATG+ is to use a 4-layer board with a solid ground plane, and to keep the input and output traces as short as possible. Additionally, it's recommended to use a common-mode filter on the input lines to reduce EMI.
  • To optimize the performance of the MAX15162AATG+ in a high-temperature environment, it's recommended to use a heat sink on the device, and to ensure good airflow around the device. Additionally, the device's thermal shutdown feature can be used to prevent damage from overheating.
  • The maximum input voltage that the MAX15162AATG+ can handle is 42V, but it's recommended to limit the input voltage to 40V to ensure reliable operation and to prevent damage to the device.
  • To troubleshoot issues with the MAX15162AATG+, it's recommended to check the input and output voltages, and to verify that the device is properly configured and connected. Additionally, the device's fault flags can be used to diagnose issues such as overvoltage, undervoltage, and overtemperature.
  • Yes, the MAX15162AATG+ can be used in a redundant power supply configuration. The device's ORing function allows multiple devices to be connected in parallel, and the device's fault flags can be used to detect and respond to faults in the system.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX15162AATG+ Overview

Use the download button to access the MAX15162AATG+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX15, or try a keyword search, such as Power Management Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
