- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for MAX15162ATG+
- Part Number MAX15162ATG+
- Manufacturer Analog Devices
- Pin Count 25
- Part Category Integrated Circuit
- Package Category Quad Flat No-Lead
- Footprint Name Quad Flat No-Lead - T2444+2c
- Released Date Oct 16, 2020
- Last Modified Date Jul 5, 2023 4:22 PM UTC
- Pinout / Pin List Click Here (Member Only)
MAX15162ATG+ Details
-
Manufacturer Part Number:
MAX15162ATG+
-
Brand Name:
Analog Devices Inc
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Part Package Code:
24-LFCSP-4X4X0.75
-
Package Description:
TQFN-24
-
Pin Count:
24
-
Manufacturer Package Code:
24-LFCSP-4X4X0.75
-
Country Of Origin:
Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.60
-
Date Of Intro:
2020-04-17
MAX15162ATG+ Frequently Asked Questions (FAQs)
-
The recommended PCB layout for the MAX15162ATG+ is to use a 4-layer board with a solid ground plane, and to keep the input and output traces as short as possible. Additionally, it's recommended to use a common-mode filter capacitor between the input and output pins to reduce EMI.
-
To optimize the performance of the MAX15162ATG+ in a high-temperature environment, it's recommended to use a heat sink, ensure good airflow, and reduce the power dissipation by optimizing the input and output voltage levels. Additionally, the device can be derated to reduce the power dissipation at high temperatures.
-
The maximum input voltage that can be applied to the MAX15162ATG+ is 42V, but it's recommended to limit the input voltage to 36V to ensure reliable operation and to prevent damage to the device.
-
To troubleshoot issues with the MAX15162ATG+, start by checking the input and output voltage levels, and ensure that the device is properly powered and configured. Use an oscilloscope to check for any oscillations or noise on the output, and verify that the input and output capacitors are properly connected. If the issue persists, consult the datasheet and application notes for further guidance.
-
Yes, the MAX15162ATG+ can be used in a redundant or fault-tolerant system. The device has a built-in undervoltage lockout (UVLO) feature that can be used to detect faults and switch to a redundant power supply. Additionally, the device can be configured to provide a fault signal output to indicate a fault condition.
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
MAX15162ATG+ Overview

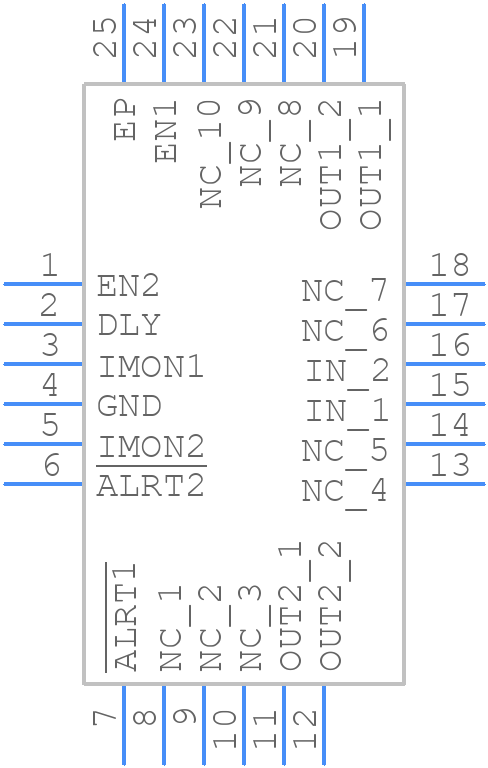

Use the download button to access the MAX15162ATG+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX15,
or try a keyword search, such as Power Management Circuits
