MAX1563ETC+ - Analog Devices

Description: MAXIM INTEGRATED PRODUCTS - MAX1563ETC+ - Special Function IC, USB Current Limited Switch, 4 V to 5.5 V in, TQFN-12

Download MAX1563ETC+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

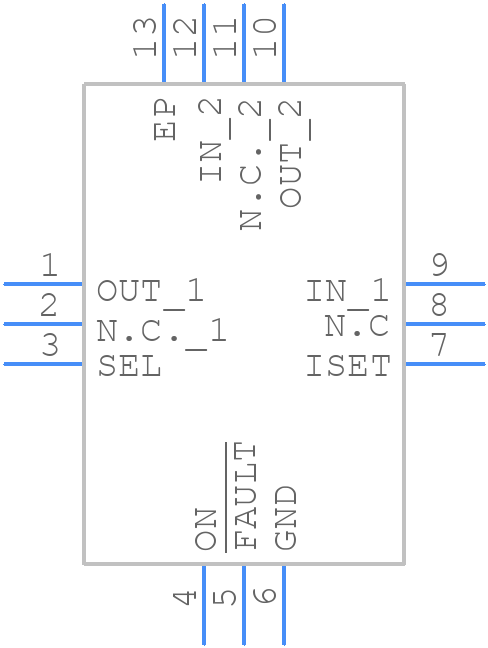

MAX1563ETC+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX1563ETC+ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 12 TQFN-EP
click to zoom
3D Models
MAX1563ETC+ - Analog Devices - 3D model - Quad Flat No-Lead - 12 TQFN-EP
click to zoom

MAX1563ETC+ Details

  • Manufacturer Part Number:

    MAX1563ETC+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    12-LFCSP-4X4X0.75

  • Package Description:

    4 X 4 MM, 0.75 MM HEIGHT, ROHS COMPLIANT, MO-220WGGB, TQFN-12

  • Pin Count:

    12

  • Manufacturer Package Code:

    12-LFCSP-4X4X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2003-08-12

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    LOAD SWITCH

  • JESD-30 Code:

    S-XQCC-N12

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    85 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC12,.16SQ,32

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max (Isup):

    0.08 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

MAX1563ETC+ Frequently Asked Questions (FAQs)

  • The recommended input capacitor value is 10uF to 22uF, depending on the input voltage and output current requirements. A larger capacitor value can help to reduce input ripple and improve output stability.
  • To minimize EMI, it is recommended to keep the input and output capacitors close to the device, use a solid ground plane, and keep the high-frequency switching nodes (such as the LX pin) away from sensitive analog nodes. Additionally, using a shielded inductor and keeping the layout symmetrical can also help to reduce EMI.
  • The maximum ambient temperature range for the MAX1563ETC+ is -40°C to +125°C. However, the device's performance and reliability may be affected at extreme temperatures, so it's recommended to operate the device within a temperature range of -20°C to +85°C for optimal performance.
  • Yes, the MAX1563ETC+ is suitable for high-reliability applications. It is manufactured using a high-reliability process and has undergone rigorous testing to ensure its performance and reliability. However, it's recommended to follow proper design and layout guidelines, as well as to perform thorough testing and validation, to ensure the device meets the specific requirements of the application.
  • To troubleshoot issues with the MAX1563ETC+, start by checking the input voltage, output voltage, and current. Verify that the device is properly configured and that the input and output capacitors are properly sized. Check for signs of overheating, such as excessive temperature or thermal shutdown. Use an oscilloscope to check for switching noise and ripple. If the issue persists, consult the datasheet and application notes, or contact Analog Devices' technical support for further assistance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX1563ETC+ Overview

Use the download button to access the MAX1563ETC+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX15, or try a keyword search, such as Power Management Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
