MAX16013TT+T - Analog Devices

Description: MAXIM INTEGRATED PRODUCTS - MAX16013TT+T - MPU Supervisor, 5.5V-72V supply, Active-Low, Open-Drain reset, 1.18V threshold, TDFN-6

Download MAX16013TT+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

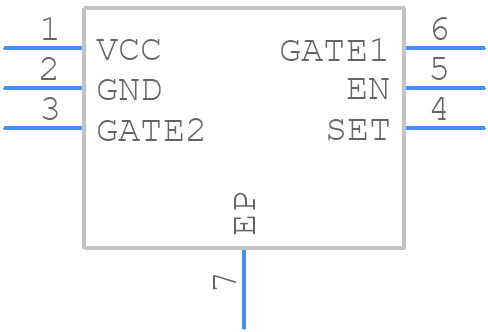

MAX16013TT+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX16013TT+T - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - T633-2
click to zoom
3D Models
MAX16013TT+T - Analog Devices - 3D model - Small Outline No-lead - T633-2
click to zoom

MAX16013TT+T Details

  • Manufacturer Part Number:

    MAX16013TT+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    6-LFCSP-3X3X0.75

  • Package Description:

    HVSON, SOLCC6,.13,38

  • Pin Count:

    6

  • Manufacturer Package Code:

    6-LFCSP-3X3X0.75

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2005-08-16

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    OVERVOLTAGE DETECTOR

  • JESD-30 Code:

    S-XDSO-N6

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC6,.13,38

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max (Isup):

    0.04 mA

  • Supply Voltage-Max (Vsup):

    72 V

  • Supply Voltage-Min (Vsup):

    5.5 V

  • Supply Voltage-Nom (Vsup):

    14 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.95 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

MAX16013TT+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX16013TT+T involves keeping the input and output traces short and separate, using a solid ground plane, and placing the device close to the battery. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to minimize noise and EMI.
  • The choice of external components depends on the specific application requirements, such as the input voltage range, output voltage, and desired accuracy. A good starting point is to use the component values recommended in the datasheet, and then adjust them based on simulation results or empirical testing. It's also important to consider the tolerance and temperature coefficient of the components.
  • The MAX16013TT+T can handle input voltages up to 32V, but it's recommended to limit the input voltage to 28V or less to ensure reliable operation and prevent damage to the device.
  • The MAX16013TT+T has a built-in OVP feature that can be enabled by connecting the OVP pin to a voltage divider network. The OVP threshold can be set by adjusting the voltage divider ratio. When the input voltage exceeds the OVP threshold, the device will shut down to prevent damage.
  • The typical startup time for the MAX16013TT+T is around 1ms, but it can be minimized by using a smaller input capacitor (C1) and a faster rising input voltage. Additionally, the startup time can be reduced by using a lower value for the soft-start capacitor (C2).
