MAX16025TE+ - Analog Devices

Description: MAXIM INTEGRATED PRODUCTS - MAX16025TE+ - MPU SUPERVISOR, DUAL, 28V, TQFN-16

Download MAX16025TE+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

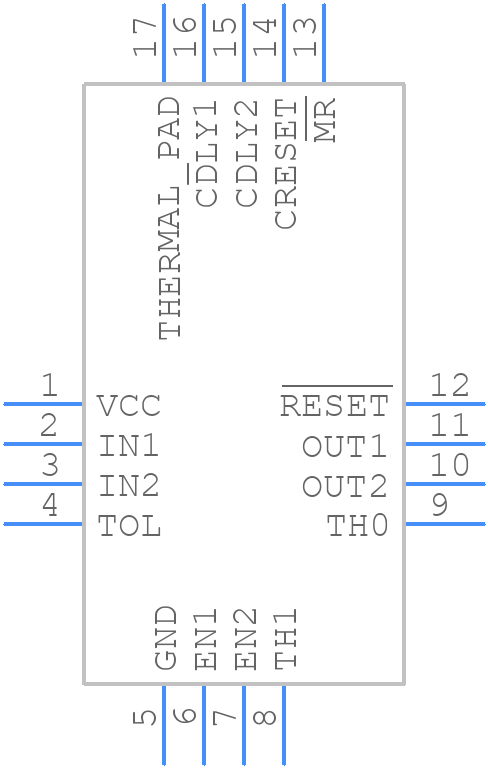

MAX16025TE+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX16025TE+ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - TQFN16 4X4X0.75MM
click to zoom
3D Models
MAX16025TE+ - Analog Devices - 3D model - Quad Flat No-Lead - TQFN16 4X4X0.75MM
click to zoom

MAX16025TE+ Details

  • Manufacturer Part Number:

    MAX16025TE+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    16-LFCSP-4X4X0.75

  • Package Description:

    4 X 4 MM, 0.80 MM HEIGHT, LEAD FREE, MO-220WGGC, TQFN-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    16-LFCSP-4X4X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2006-05-22

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    S-XQCC-N16

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    VQCCN

  • Package Equivalence Code:

    LCC16,.16SQ,25

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max (Isup):

    0.08 mA

  • Supply Voltage-Max (Vsup):

    28 V

  • Supply Voltage-Min (Vsup):

    2.2 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    QUAD

  • Threshold Voltage-Nom:

    +2V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

MAX16025TE+ Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the MAX16025TE+ involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces to reduce noise and EMI. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure stability, it's essential to follow the recommended component values and layout guidelines, and to ensure that the output capacitor is properly sized and placed. Additionally, the input voltage should be within the recommended range, and the device should be operated within the specified temperature range.
  • The MAX16025TE+ can handle input voltages up to 32V, but it's recommended to operate within the specified input voltage range of 4.5V to 28V for optimal performance and reliability.
  • The MAX16025TE+ is rated for operation up to 125°C, but it's essential to ensure that the device is properly derated for high-temperature operation. The device's power dissipation and junction temperature should be carefully monitored to prevent overheating and ensure reliable operation.
  • To troubleshoot issues with the MAX16025TE+, start by verifying the input voltage and current, and checking for any signs of overheating or physical damage. Use an oscilloscope to check the output voltage and current, and consult the datasheet and application notes for guidance on troubleshooting common issues.
