MAX16051ETI+ - Analog Devices

Description: MAXIM INTEGRATED PRODUCTS - MAX16051ETI+ - MPU Supervisor, 6 Monitors, 2.7V-13.2V supply, Active-Low reset, 128 ms delay, TQFN-28

Download MAX16051ETI+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

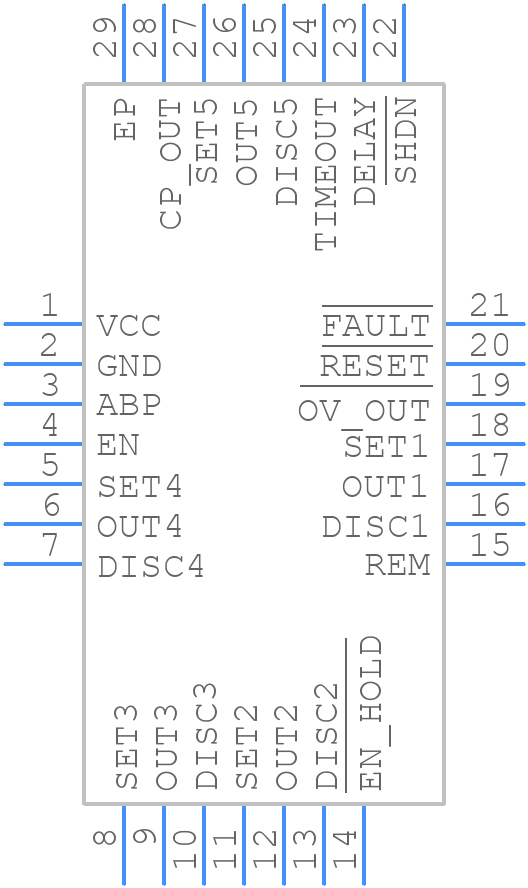

MAX16051ETI+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX16051ETI+ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - T2844+1
click to zoom
3D Models
MAX16051ETI+ - Analog Devices - 3D model - Quad Flat No-Lead - T2844+1
click to zoom

MAX16051ETI+ Details

  • Manufacturer Part Number:

    MAX16051ETI+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    28-LFCSP-4X4X0.75

  • Package Description:

    TQFN-EP-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    28-LFCSP-4X4X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2007-11-13

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    INPUT FAULT PROTECTION CONTROLLER

  • JESD-30 Code:

    S-XQCC-N28

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC28,.16SQ,16

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max (Isup):

    1.1 mA

  • Supply Voltage-Max (Vsup):

    13.2 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Threshold Voltage-Nom:

    +0.5V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

MAX16051ETI+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX16051ETI+ involves keeping the input and output traces short and separate, using a solid ground plane, and placing the device close to the battery. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to minimize noise and EMI.
  • The RSET and RMON resistors determine the accuracy and range of the voltage monitoring function. The recommended values can be calculated using the formulas provided in the datasheet, taking into account the desired voltage monitoring range and the desired accuracy. Typically, RSET is in the range of 1kΩ to 10kΩ, and RMON is in the range of 10kΩ to 100kΩ.
  • The EN (enable) pin is used to turn the device on or off. When EN is high, the device is enabled, and when EN is low, the device is in shutdown mode. This pin can be used to reduce power consumption when the device is not in use. It's recommended to connect EN to a logic-level signal or a voltage divider to ensure proper operation.
  • The MAX16051ETI+ has built-in fault detection and reporting features, including overvoltage, undervoltage, and overtemperature detection. These features can be configured using the FLT and RST pins. The FLT pin can be used to trigger an interrupt or a reset signal when a fault is detected, and the RST pin can be used to reset the device when a fault is cleared.
  • The recommended power-up sequence for the MAX16051ETI+ is to first apply the power supply voltage (VCC) to the device, followed by the battery voltage (VBAT). This ensures that the device is properly initialized and configured before the battery voltage is applied.
