MAX16058ATA29+T - Analog Devices

Description: Supervisory Circuits 125nA Supervisory Circuits with Capacitor-Adjustable Reset and Watchdog Timeouts

Download MAX16058ATA29+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

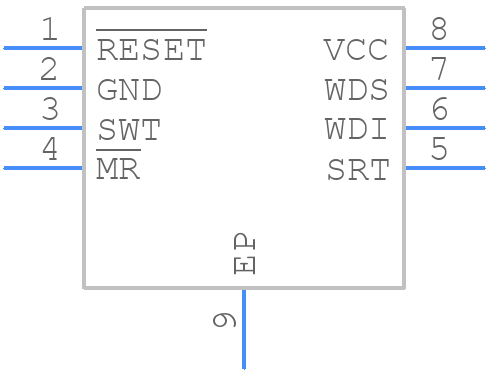

MAX16058ATA29+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX16058ATA29+T - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - T833+2
click to zoom
3D Models
MAX16058ATA29+T - Analog Devices - 3D model - Small Outline No-lead - T833+2
click to zoom

MAX16058ATA29+T Details

  • Manufacturer Part Number:

    MAX16058ATA29+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-LFCSP-3X3X0.75

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-LFCSP-3X3X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2009-08-14

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    BAT BUP SW:N;MNL RST:Y;OV DET:N;PW FL IP:N;PW FL IO:N;PW FL OP:N;PRG RST DLY:Y;UV DET:N;WD:Y;WWD:N

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    S-XQCC-N8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    SOLCC8,.12,25

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max (Isup):

    0.015 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    1.1 V

  • Supply Voltage-Nom (Vsup):

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    QUAD

  • Threshold Voltage-Nom:

    +2.925V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

MAX16058ATA29+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX16058ATA29+T involves keeping the input and output traces short and separate, using a solid ground plane, and placing the device close to the battery. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to minimize noise and EMI.
  • Calibration of the MAX16058ATA29+T involves adjusting the internal voltage reference to match the specific battery chemistry and voltage range. This can be done by applying a known voltage to the input pins and adjusting the internal reference voltage using the CAL pin. The datasheet provides a detailed calibration procedure.
  • The MAX16058ATA29+T has an operating temperature range of -40°C to +125°C, making it suitable for use in a wide range of applications, including automotive and industrial systems.
  • Yes, the MAX16058ATA29+T is designed to operate in high-vibration environments, making it suitable for use in applications such as automotive, industrial, and aerospace systems. However, it's recommended to follow proper PCB design and assembly practices to ensure the device is securely attached to the board.
  • The MAX16058ATA29+T can be interfaced with a microcontroller using a standard I2C or SPI interface. The device provides a digital output that can be connected to the microcontroller's I/O pins, and the microcontroller can then read the voltage monitoring data using the I2C or SPI protocol.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX16058ATA29+T Overview

Use the download button to access the MAX16058ATA29+T schematic symbol, PCB footprint, and 3D model.
