MAX16126TCC+ - Analog Devices

Description: Load-Dump/Reverse-Voltage Protection Circuits

Download MAX16126TCC+ Model

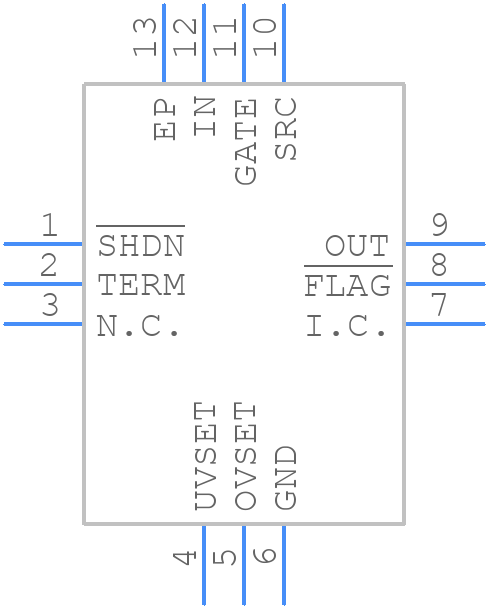

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MAX16126TCC+ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - T1233 +4
click to zoom
3D Models
MAX16126TCC+ - Analog Devices  - 3D model - Quad Flat No-Lead - T1233 +4
click to zoom

MAX16126TCC+ Details

  • Manufacturer Part Number:

    MAX16126TCC+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    12-LFCSP-3X3X0.75

  • Pin Count:

    12

  • Manufacturer Package Code:

    12-LFCSP-3X3X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2011-12-12

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    INPUT FAULT PROTECTION CONTROLLER

  • JESD-30 Code:

    S-XQCC-N12

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC12,.12SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    30 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    12 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

MAX16126TCC+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX16126TCC+ involves keeping the input and output traces short and separate, using a solid ground plane, and placing the device close to the battery. A 4-layer PCB with a dedicated power plane is recommended. Refer to the MAX16126TCC+ evaluation kit for a reference design.
  • Calibration is not required for the MAX16126TCC+, as it is a ratiometric device that measures the voltage relative to the internal reference. However, it's essential to ensure that the input voltage range is within the specified limits and that the device is operated within the recommended temperature range.
  • The maximum cable length for the voltage sense lines depends on the system's noise environment and the desired accuracy. As a general guideline, keep the sense lines as short as possible (less than 10 inches) and use twisted pairs or shielded cables to minimize noise pickup. If longer cables are necessary, consider adding filters or buffers to maintain signal integrity.
  • Yes, the MAX16126TCC+ can be used for hot-swap applications. The device has a built-in undervoltage lockout (UVLO) feature that ensures the output is disabled during power-up and power-down sequences. Additionally, the device's low power consumption and high accuracy make it suitable for hot-swap applications.
  • The FAULT output is an open-drain pin that indicates a fault condition, such as an overvoltage or undervoltage event. You can connect the FAULT pin to a microcontroller or a logic circuit to trigger an interrupt or initiate a system response. Ensure that the FAULT pin is properly pulled up to a suitable voltage level (e.g., VCC or a dedicated pull-up voltage).
