MAX16126TCC+T - Analog Devices

Description: Load-Dump/Reverse-Voltage Protection Circuits

Download MAX16126TCC+T Model

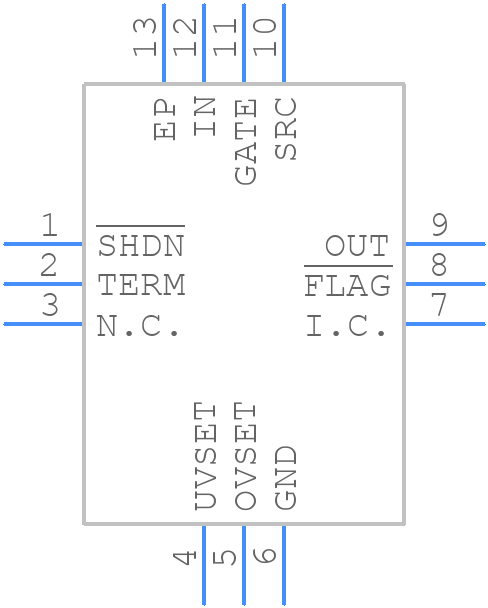

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MAX16126TCC+T - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - T1233+4(h=0.8)
click to zoom
3D Models
MAX16126TCC+T - Analog Devices  - 3D model - Quad Flat No-Lead - T1233+4(h=0.8)
click to zoom

MAX16126TCC+T Details

  • Manufacturer Part Number:

    MAX16126TCC+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    12-LFCSP-3X3X0.75

  • Package Description:

    3 X 3 MM, ROHS COMPLIANT, TQFN-12

  • Pin Count:

    12

  • Manufacturer Package Code:

    12-LFCSP-3X3X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2011-12-12

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    OVSET/UVSET THRESHOLD IS 1.225V; ALSO OPERATES FROM PROTECTIVE SUPPLY VOLTAGE RANGE -36 TO 90V

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    INPUT FAULT PROTECTION CONTROLLER

  • JESD-30 Code:

    S-XQCC-N12

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC12,.12SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max (Isup):

    0.32 mA

  • Supply Voltage-Max (Vsup):

    30 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    12 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Threshold Voltage-Nom:

    1.225V;1.225V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

MAX16126TCC+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX16126TCC+T involves keeping the input and output traces short and separate, using a solid ground plane, and placing the device close to the battery or power source. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to minimize noise and EMI.
  • The MAX16126TCC+T does not require calibration for voltage monitoring. The device has an internal voltage reference and a high-accuracy ADC that provides accurate voltage measurements. However, it's recommended to follow the datasheet guidelines for setting the voltage monitoring threshold and hysteresis to ensure accurate and reliable voltage monitoring.
  • No, the MAX16126TCC+T is designed to monitor voltages up to 5V. If you need to monitor higher voltages, you'll need to use an external voltage divider or attenuator to scale the voltage down to a level that's within the device's input range.
  • The MAX16126TCC+T has a digital output that can be connected directly to a microcontroller or other digital system. The device uses an open-drain output, so you'll need to use a pull-up resistor to connect the output to the microcontroller's input. The datasheet provides more information on the digital output and how to interface it with a microcontroller.
  • The typical response time of the MAX16126TCC+T to a voltage fault condition is around 10μs. However, this can vary depending on the specific application and the settings used for the voltage monitoring threshold and hysteresis.
