MAX16126TCD+T - Analog Devices

Description: Load-Dump/Reverse-Voltage Protection Circuits

Download MAX16126TCD+T Model

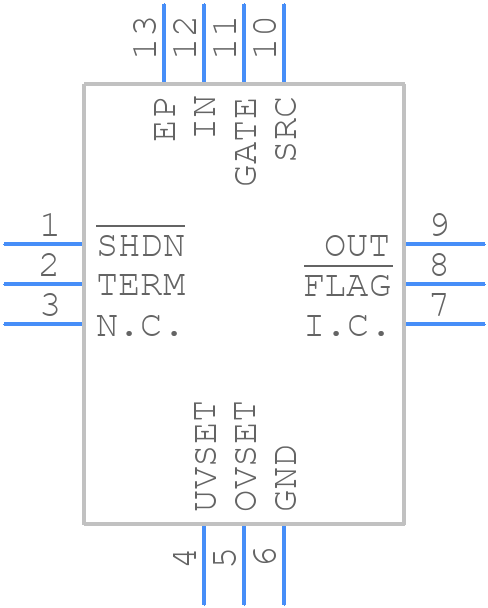

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MAX16126TCD+T - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - T1233 +4
click to zoom
3D Models
MAX16126TCD+T - Analog Devices  - 3D model - Quad Flat No-Lead - T1233 +4
click to zoom

MAX16126TCD+T Details

  • Manufacturer Part Number:

    MAX16126TCD+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    12-LFCSP-3X3X0.75

  • Package Description:

    3 X 3 MM, ROHS COMPLIANT, TQFN-12

  • Pin Count:

    12

  • Manufacturer Package Code:

    12-LFCSP-3X3X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2011-12-12

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    OVSET/UVSET THRESHOLD IS 1.225V; ALSO OPERATES FROM PROTECTIVE SUPPLY VOLTAGE RANGE -36 TO 90V

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    INPUT FAULT PROTECTION CONTROLLER

  • JESD-30 Code:

    S-XQCC-N12

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC12,.12SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max (Isup):

    0.32 mA

  • Supply Voltage-Max (Vsup):

    30 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    12 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Threshold Voltage-Nom:

    1.225V;1.225V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

MAX16126TCD+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX16126TCD+T involves keeping the input and output traces short and separate, using a solid ground plane, and placing the device close to the battery or power source. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to minimize noise and EMI.
  • Calibration of the MAX16126TCD+T involves adjusting the internal voltage reference to match the specific voltage range of the system. This can be done by applying a known voltage to the input pins and adjusting the internal reference voltage using the CAL pin. The device also has a built-in calibration mode that can be accessed through the I2C interface.
  • The MAX16126TCD+T can handle input voltages up to 36V, but it's recommended to operate within the specified voltage range of 2.7V to 5.5V for optimal accuracy and reliability.
  • The MAX16126TCD+T has an I2C interface that can be easily connected to a microcontroller. The device has a 7-bit address that can be set using the ADDR pin, and the microcontroller can read the voltage monitoring data using the I2C protocol.
  • The MAX16126TCD+T has a typical current consumption of 120μA when operating in normal mode, and 1μA when operating in shutdown mode. The power consumption can be further reduced by using the device's power-saving features, such as the low-power mode.
