MAX1613600/VY+T - Analog Devices

Description: High-Precision Supervisory ICs with Window Watchdog and Overvoltage Indicator

Download MAX1613600/VY+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

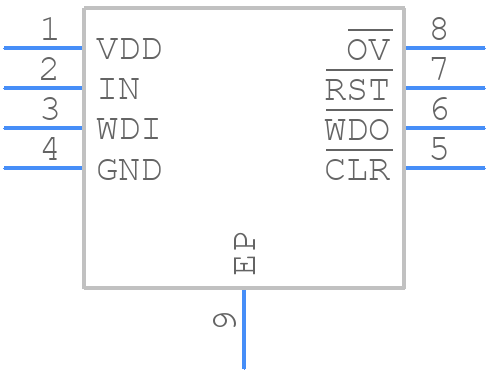

Symbol
MAX1613600/VY+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX1613600/VY+T - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - T822Y+3C
click to zoom
3D Models
MAX1613600/VY+T - Analog Devices - 3D model - Small Outline No-lead - T822Y+3C
click to zoom

MAX1613600/VY+T Details

  • Manufacturer Part Number:

    MAX1613600/VY+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-LFCSP_SS-2X2X0.75

  • Package Description:

    TDFN-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-LFCSP_SS-2X2X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2019-08-26

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Additional Feature:

    MNL RST:N;PW FL IO:N;PRG RST DLY:N;WD:Y;WDO:Y;WWD:Y

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    WINDOW VOLTAGE DETECTOR

  • JESD-30 Code:

    S-PDSO-N8

  • Length:

    2 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HWSON

  • Package Equivalence Code:

    SOLCC8,.08,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max (Isup):

    0.035 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    1.71 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +3.3V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2 mm

MAX1613600/VY+T Frequently Asked Questions (FAQs)

  • A good PCB layout is crucial for the MAX1613600's performance. It's recommended to follow the layout guidelines provided in the datasheet, including keeping the input and output traces short and away from noise sources, using a solid ground plane, and placing the bypass capacitors close to the device.
  • To ensure accurate voltage monitoring, make sure to use a high-impedance input source, keep the input traces short and shielded, and avoid loading the input pins with excessive capacitance. Also, calibrate the device according to the datasheet's calibration procedure.
  • The maximum allowed voltage on the input pins of the MAX1613600 is 36V. Exceeding this voltage can damage the device. It's recommended to use voltage limiting resistors or clamping diodes to protect the input pins from overvoltage conditions.
  • The MAX1613600 is rated for operation up to 125°C. However, the device's accuracy and reliability may degrade at high temperatures. It's recommended to derate the device's performance and consider using thermal management techniques, such as heat sinks or thermal interfaces, to maintain a safe operating temperature.
  • To troubleshoot issues with the MAX1613600's I2C interface, check the I2C bus voltage levels, clock frequency, and signal integrity. Ensure that the I2C bus is properly terminated, and that there are no bus conflicts or signal reflections. Use an oscilloscope or logic analyzer to debug the I2C communication.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX1613600/VY+T Overview

Use the download button to access the MAX1613600/VY+T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX16, or try a keyword search, such as Power Management Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
